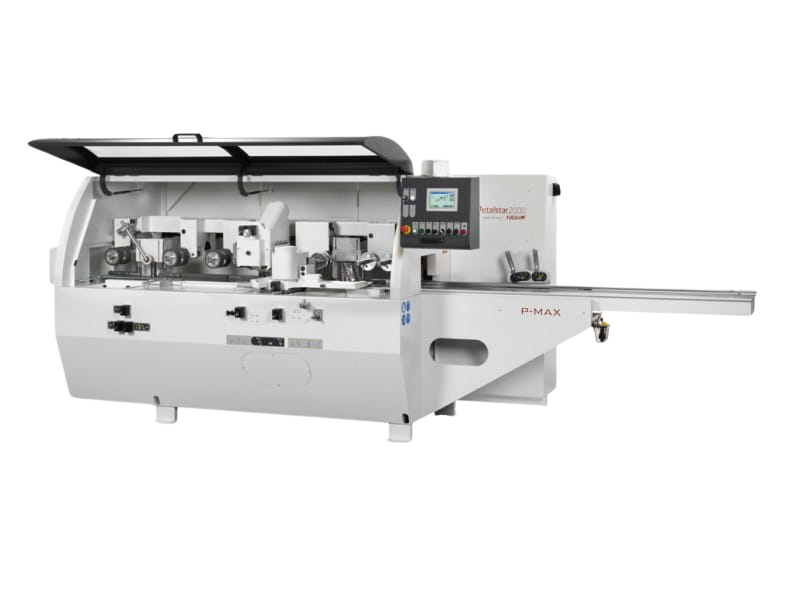

FOUR-SIDE PLANER FUTURA P.MAX

Description

Working range:

• Max. working width: 260 mm
• Min. working width: 25 mm
• Max. working height: 180 mm
• Min. working height: 8 mm

Speeds:

• Feed speed: 4/30 m/min
• Spindle speed: 6000 rpm

Tool diameters:

• Spindle tool holder diameter: ø 40 mm
• Diameter of tool 1st lower spindle: ø 125 mm
• Tool diameter range for the 4th spindle: ø 110 – 125 – 140 mm
• Max. tool diameter for 4th spindle: ø 200 mm
• Tool diameters (except for 1st and 4th spindles): ø 110 / 200 mm

Motor power:

• Spindles: 4 kW for most spindles (except upper spindle – 5.5 kW)
• Feed motor: 2.2 kW
• Motor for lifting (up/down): 0.37 kW

Dimensions and weight:

• Overall dimensions (length x width x height): 5000 x 1600 x 1700 mm
• Weight: 2500 kg
