Description

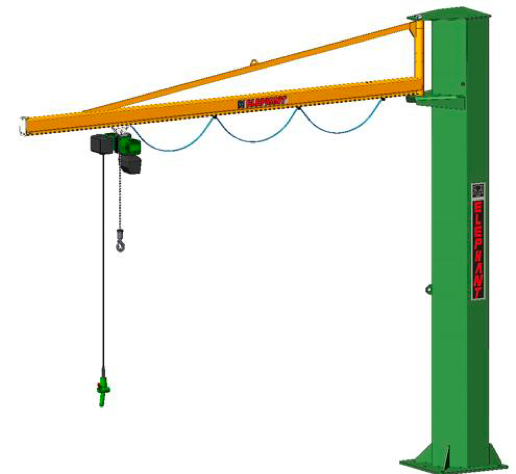

Type B-250/5
- Load capacity: 250 kg
- Arm length: 5 m
- Column height: 3.50 m
- Height under the arm: 2.83 m
- Hook height: 2.33 m
- Manual trolley included
- Rotation angle: 270°

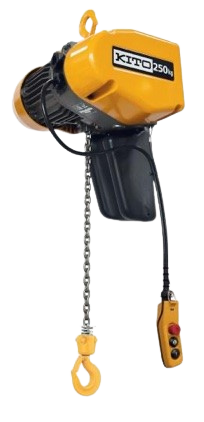

Electric hoist manually moved
Type: KQ3SD/1S
- Load Capacity: 250 kg
- Lifting Speed*: 10 m/min
- Power Supply – Control Panel: 24 V
- Power Supply: 380 V / 50 Hz
- Hook Travel: 3 m
- Hoist Power: 0.5 kW
*When the load capacity is reduced by 30% compared to standard, the lifting speed increases by 30%

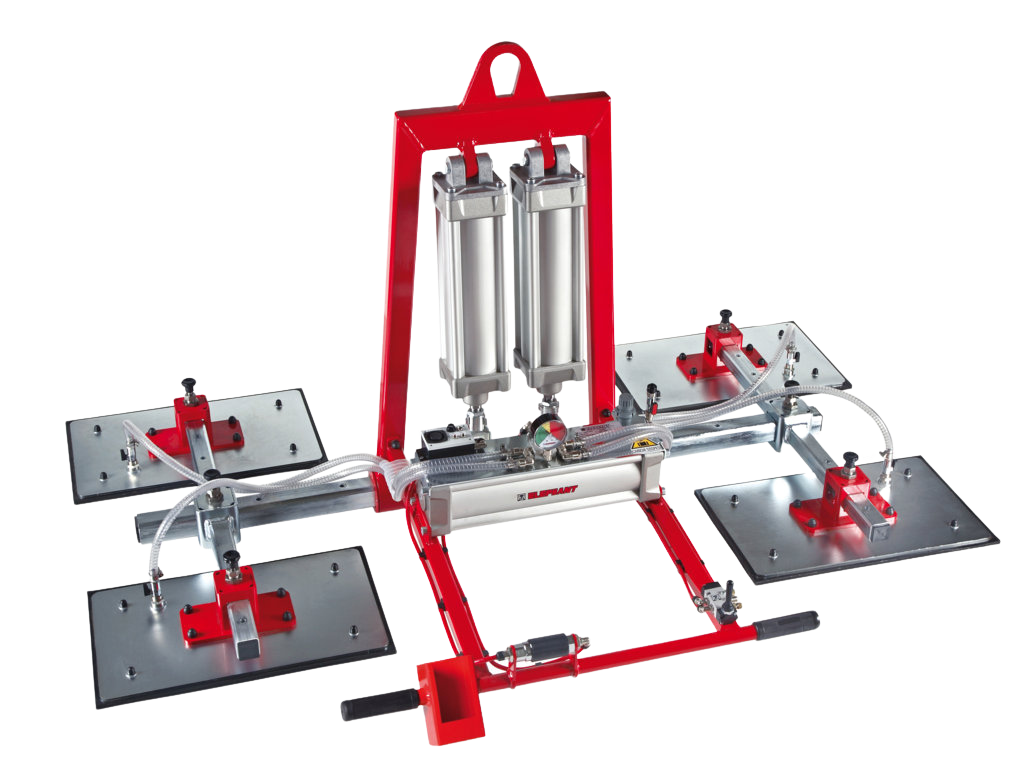

Vacuum lifting device for doors mod. PNT4RP
- Load Capacity: 90 kg
- Suction Cups: 4 pcs. 400×90 mm
- Standard Rubber Seals, suitable for surfaces with minor unevenness
- Fixed central beam with 2 transverse beams that are adjustable longitudinally
- Longitudinal and transverse adjustment
- Larger vacuum pipe
- High-quality steel frame
- Tilting structure from 0° to 90°
- Continuous action vacuum pump powered by compressed air
- Double silencers
- Vacuum indicator with a scale and color-coded markings for easier monitoring of the vacuum
- Air consumption: 500 l/min
- Operating pressure: 6/7 bar
- Alarm system – visual and audible, indicating low vacuum level.
- Central hanging hook
