Description

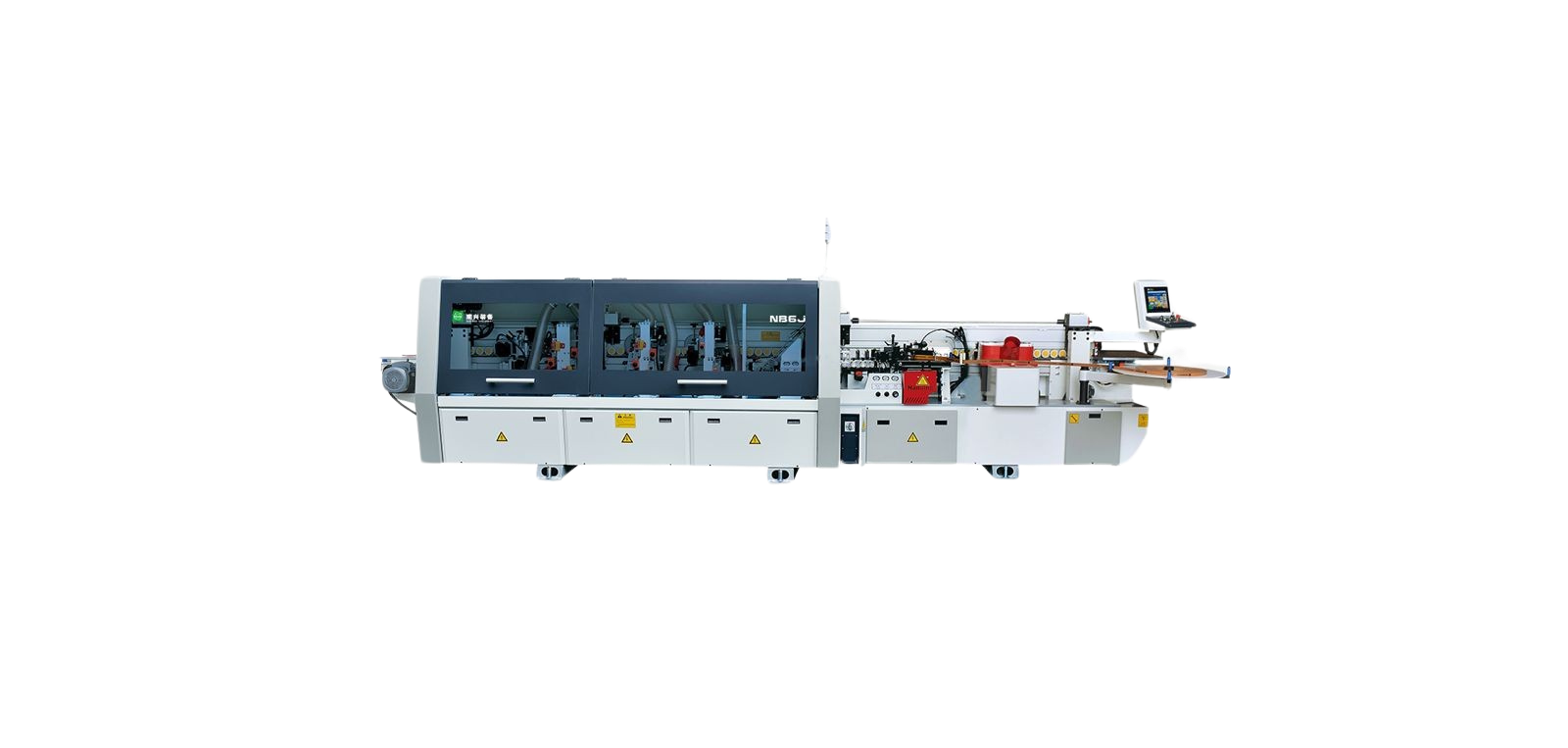

Automatic single-sided edge bander for applying and processing flat edges.
- Board length: from 120 mm,
- Plate width: from 40 mm,
- Board thickness: 9-60 mm,
- Edge thickness: 0.4-3 mm,
- Available feed speeds: 16/20/24 m/min,
- Power supply: 380V; 50Hz,
- Required air pressure: 0.7 MPa,
- Total power: 23 kW,
- Approximate weight of the machine: 2,400 kg,
- Overall dimensions of the machine: 6,600 x 1,050 x 1,650 mm,
- Control using PLC controllers. Machine operation via a 7-inch touch screen.
