Description

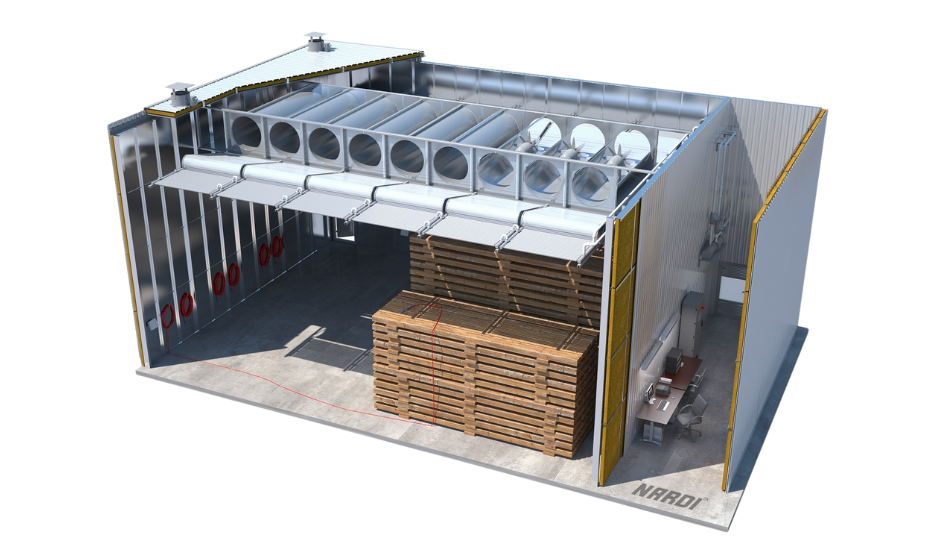

Dryer for softwood.
Useful internal dimensions: width, depth, height: 8.8m x 6.1m x 4.1m
Total volume of load: approx. 60 m3
Walls made of 1.2 mm (inside) thick aluminium panels 0.8 mm thick (outside) – insulated with high density glass wool thickness 140 mm.
Sliding loading door on top rail (hanging)
Heating capacity: 299,000 kcal/h (348 kW) at 60°C inside the chamber
Heating medium water 90° C inlet.
Humidification: 1 cold water line, 3 bar
Ventilation: 6 pcs. return fans, each 4 kW, diam. 1000 mm and 4 pairs of vents – diameter 500 mm
Control: PC – Win 10, software LEONARDO 3.0
