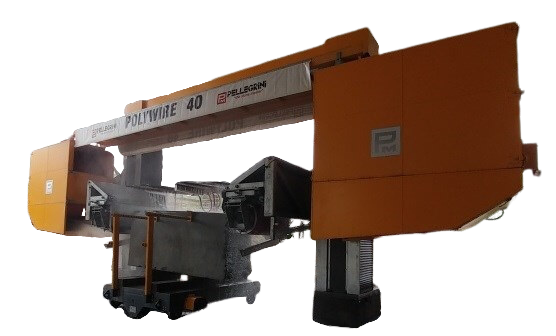

BLOCK CUTTING PELLEGRINI POLYWIRE 40

BLOCK CUTTING PELLEGRINI POLYWIRE 40

Multiline saw with the ability to mount up to 40 diamond ropes, driven by a motor drum with a diameter of 2.35 m. It is possible to use ropes with diameters of 6.3 or 7.3 mm. The patented MULTIPULL system allows for individual rope tensioning through separate flywheels with a diameter of 2 m.

Categories: ,

Description

  • Max number of ropes: 40
  • Electrical supply: 400 V / 50 Hz
  • Motor power for rope drive: 160 kW
  • Linear rope speed: from 0 to 40 m/s
  • Motor power for lifting: 7.5 kW
  • Adjustable lowering speed: 0-300 cm/h
  • Drum diameter: 2 m
  • Guide drum diameter: 0.6 m
  • Usable cutting width: 3.5 m
  • Usable cutting height: 2.1 m
  • Rope length: 27.6 m
