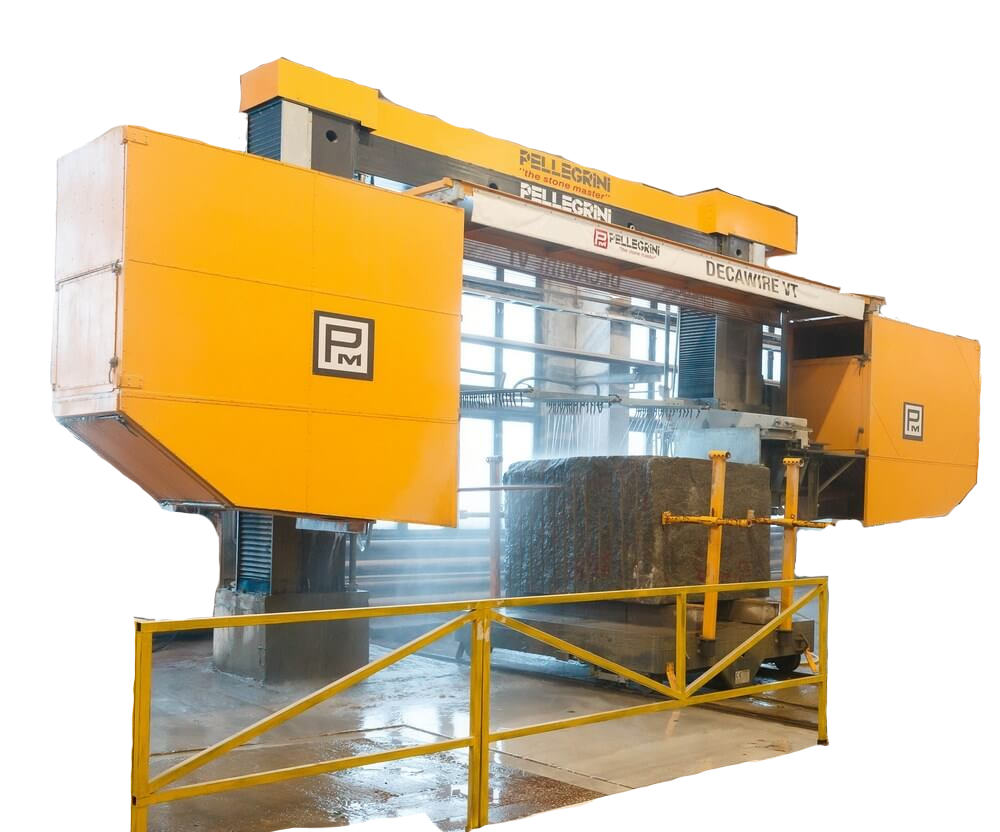

Description
- Max number of ropes: 10
- Motor power for rope drive: 45 kW
- Motor power for lifting and lowering: 7.5 kW
- Electrical power supply: 400 V / 50 Hz
- Flywheel diameter: 2 m
- Drum diameter: 2.35 m
- Guide drum diameter: 0.8 m
- Cutting usable width: 3.5 m
- Cutting usable height: 2.1 m
- Variable linear rope speed: from 0 to 40 m/s, controlled by inverter.
Diamond Rope Length:
- 24.3 m (full)
- 24.1 m (joined)
Plate thicknesses dependent on the number of installed ropes:
- 2 ropes: 21 – 1001 mm
- 3 ropes: 21 – 491 mm
- 4 ropes: 21 – 321 mm
- 5 ropes: 21 – 241 mm
- 6 ropes: 21 – 191 mm
- 7 ropes: 21 – 151 mm
- 8 ropes: 21 – 131 mm
- 9 ropes: 21 – 111 mm
- 10 ropes: 21 – 101 mm
Also available in ROLLER version.
