CNC BIESSE MASTER MULTI GO S MS M3 33 TP (INTERMAC MASTER ONE)

Description

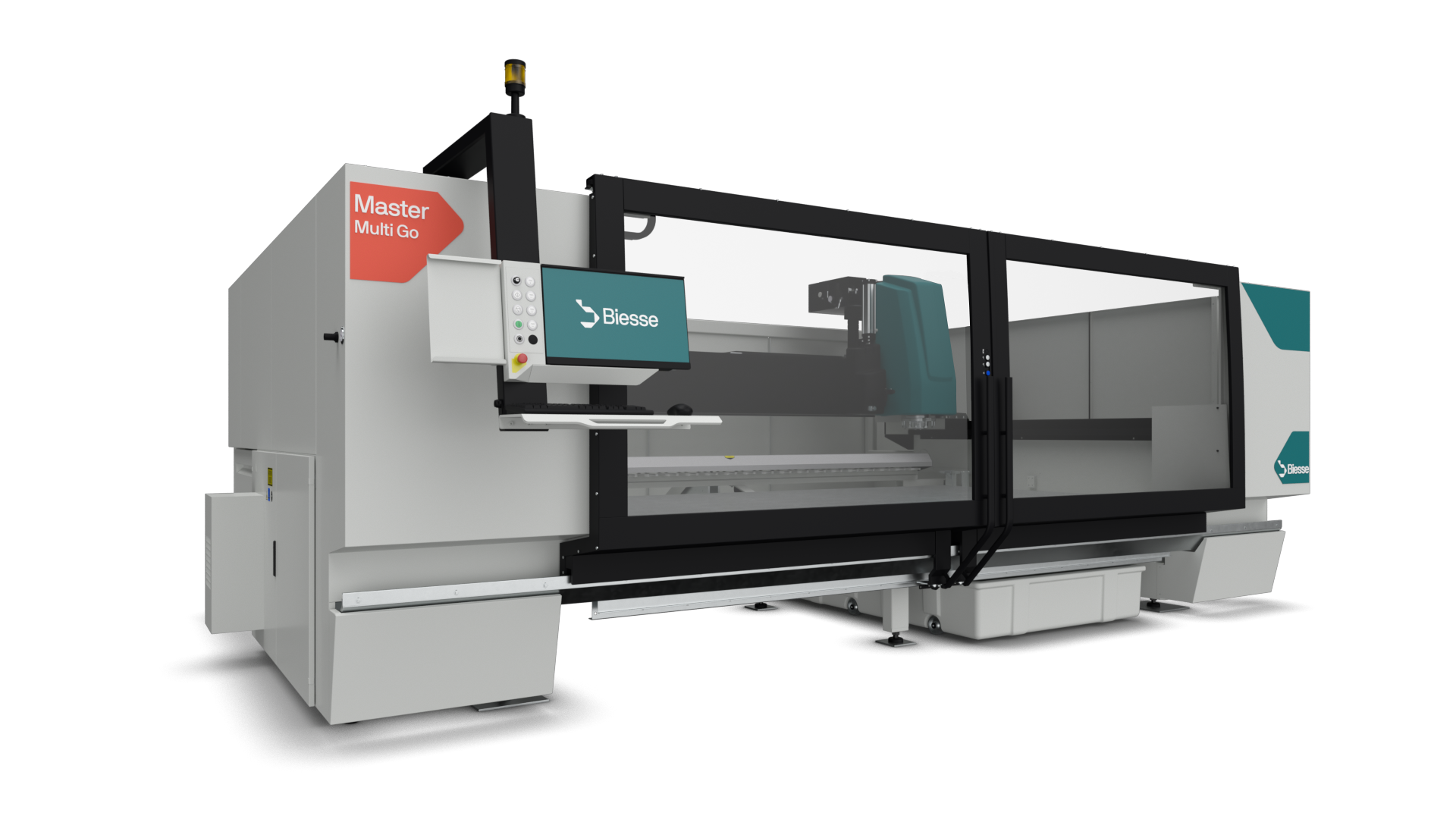

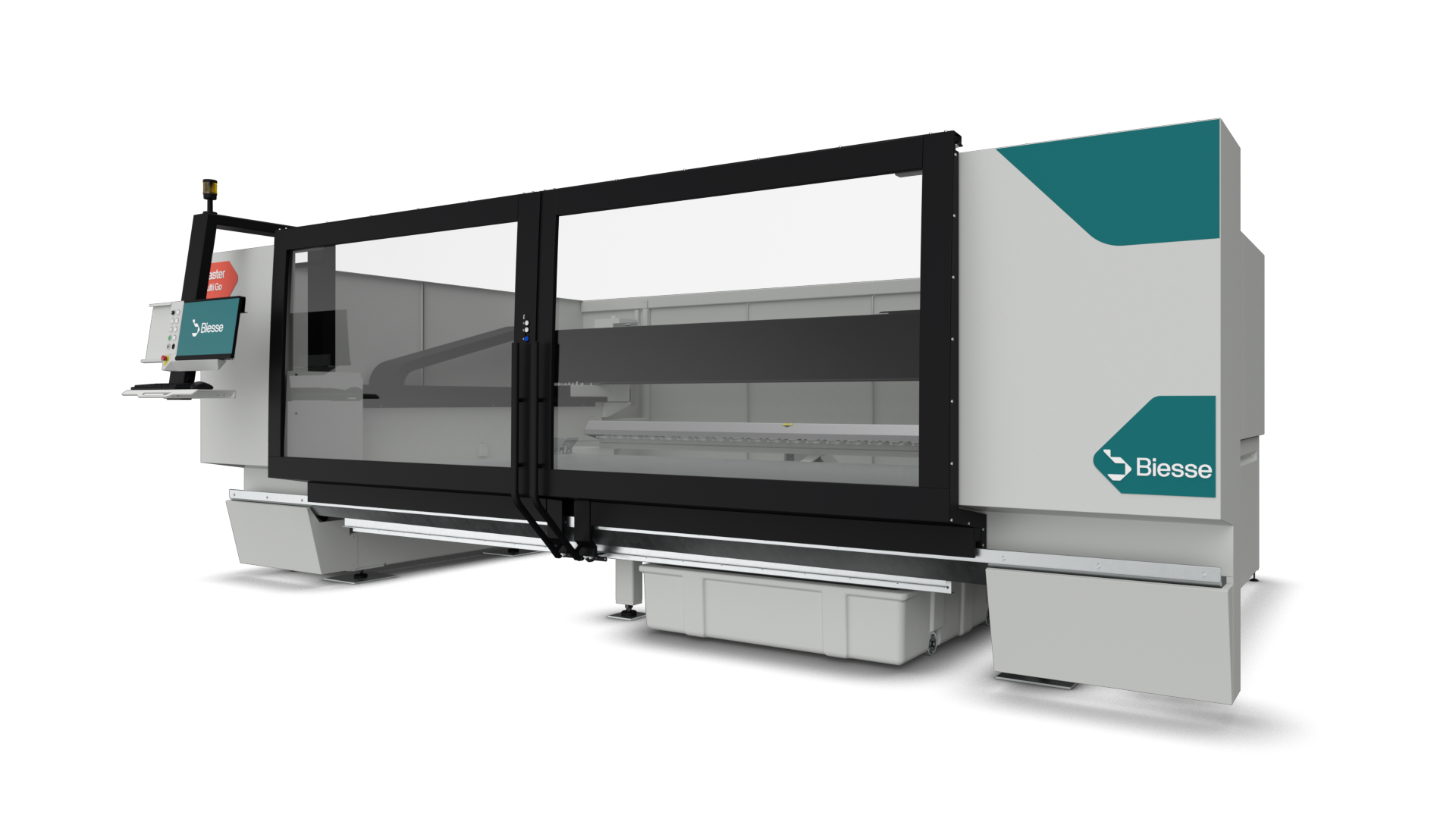

MASTER MULTI GO – 3 axis multi machining cnc horizontal center with additional swing style pneumatic T axis for drain board recesses machining.



Max working area X	3300×920
Max workable piece X	3300×920
Max working area Y	3065×1500
Max workable piece Y	3065×1500

*Standard max. working area reduced by tool pre-setter



• 15 kW electro-spindle,

• cross laser for setup,



• 23-position tool rack for efficient operation



• 23″ touchscreen with DDX EASYSTONE CAD/CAM software ensures intuitive control,



• safety is enhanced by an electro-lock system,



• Z-axis safety piston,

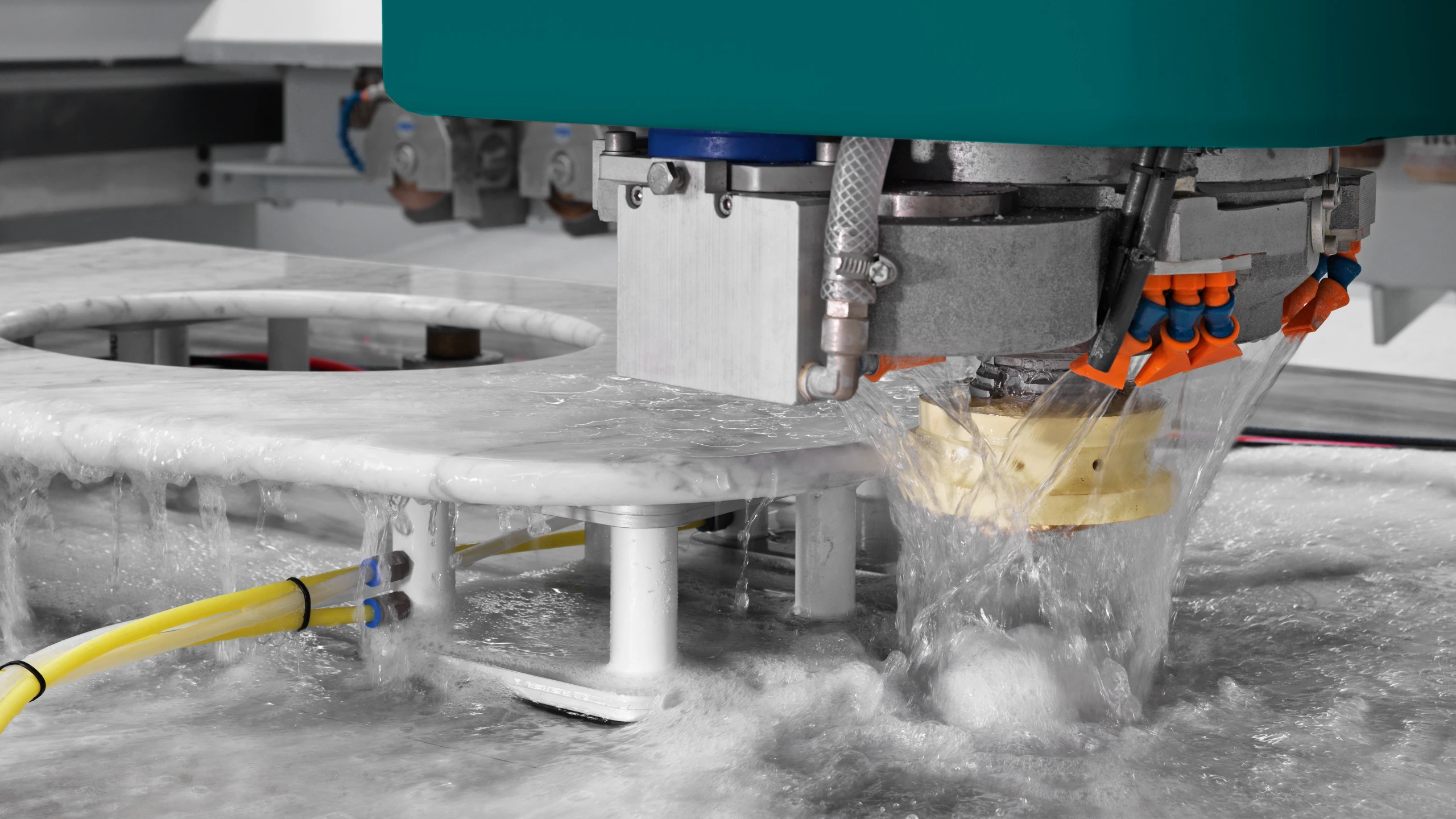

• pneumatic T axis for sink drainboard polishing



• mechanical tool pre-setter

• starter kit with backstops, suction cups, and tools for immediate use.

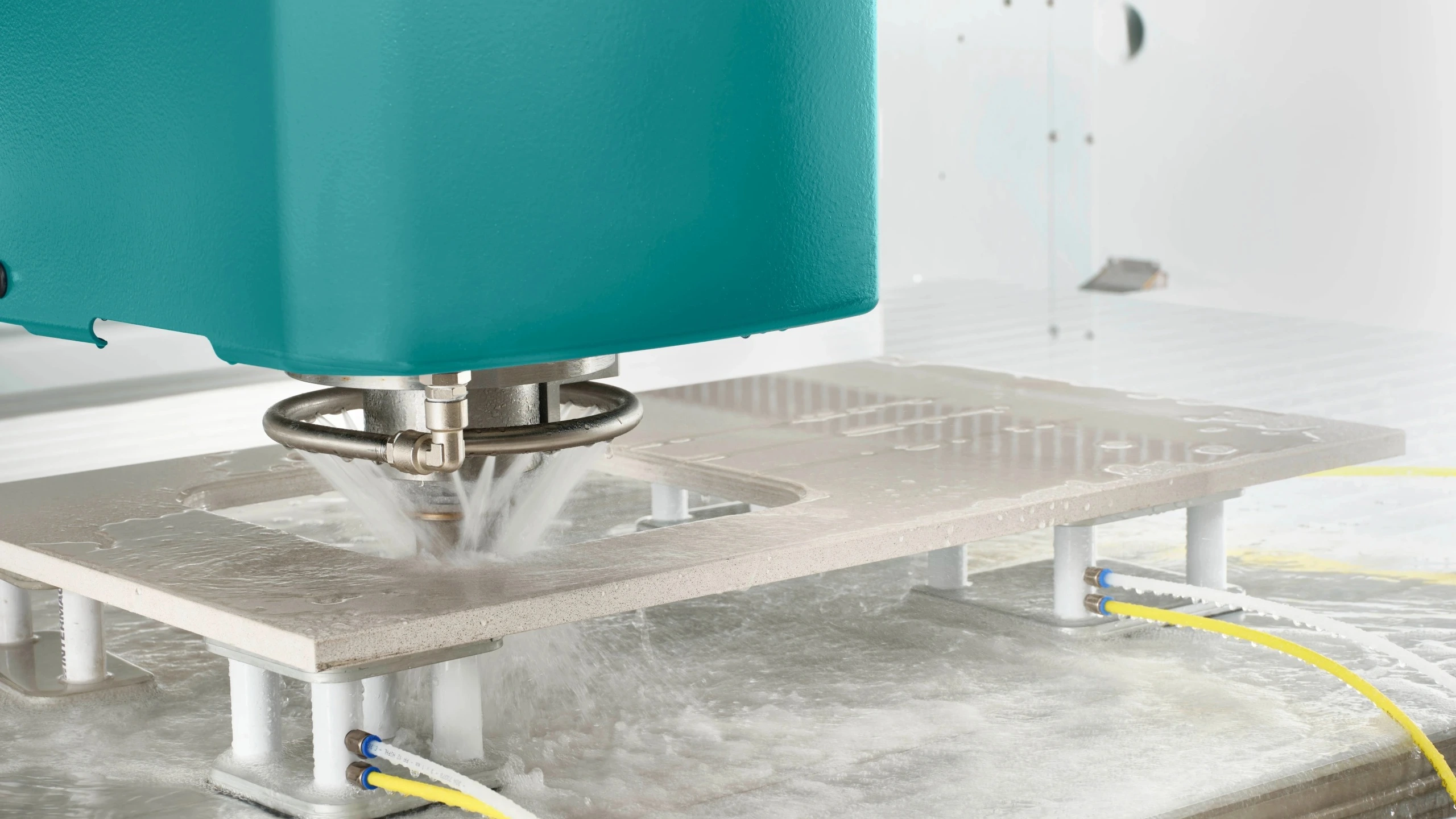

The Master Multi Go S MS is engineered for the precision machining of kitchen tops, bathroom tops, homeware furniture, and memorials. It ensures high-quality finishes across a wide range of materials, combining durability with exceptional aesthetic appeal.

The high technological content of the world’s most popular working centres satisfies the specific needs of the stone industry. Configurations with 3 axes fitted with tilting T axis for managing a vast range of machining operations. For all the configurations, the components are the same as for the top-of-the-range solutions.

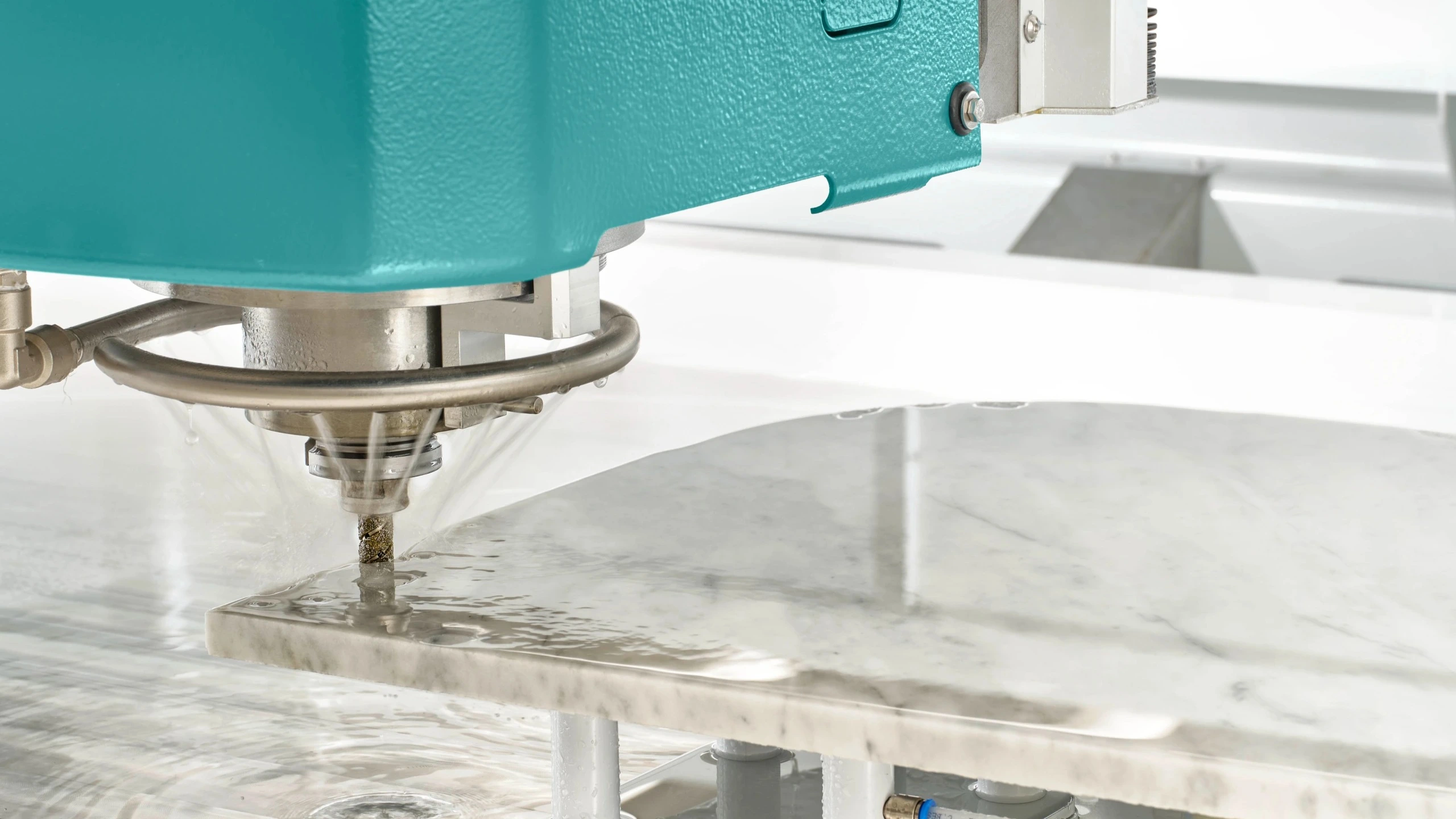

Suitable for a wide range of machining operations: from kitchen tops to memorials. Master Multi Go is capable of performing the most complex and varied machining operations, providing users with superb finish quality when working with natural stone, granite, marble and synthetic and ceramic materials.
