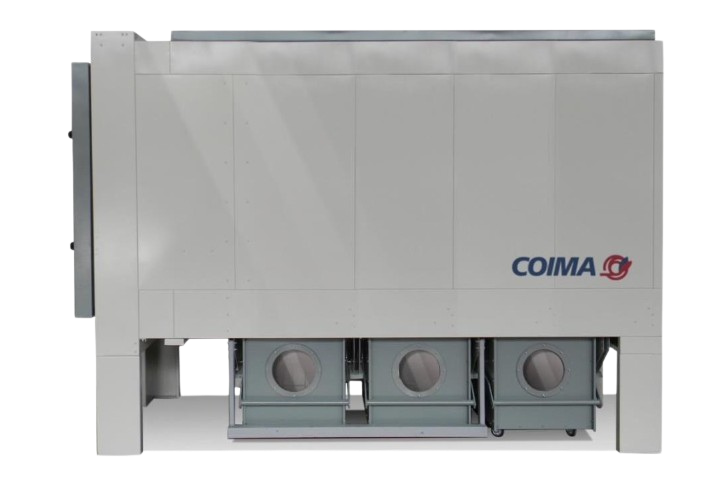

Description
- Dimensions (mm) 3500 x 1100 x (h) ~ 2440
- Power (kW) / Capacity 11 / 8.000 m3/h
- Dust extraction system – direct discharge to 3 containers
- Dimensions of filter cartridges (mm) – Ø 145 x (h) 1200
- Filter material – antistatic polyester
- Number of filter cartridges – 32
- Grammage [g/m2] – 270
- Filtration area [m2] – 144

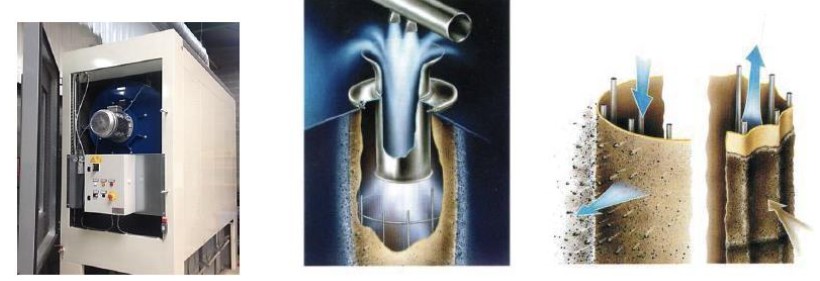

- Cartridge cleaning system – automatic compressed air cleaning system
Key Features:
- Cleaning with compressed air: Ensures perfect and consistent filtration performance, minimizing electricity consumption for the extraction of work waste
- Discharge system: The filtered material is discharged into 3 metal containers, which are equipped with glass windows to control the filling level
- Negative pressure operation: Guarantees maximum suction efficiency and ensures fire and explosion safety
- Shut-off ring: Features manual activation and is equipped with sprinklers on top of the filter unit for homogeneous water distribution in case of activation
Settling chamber:

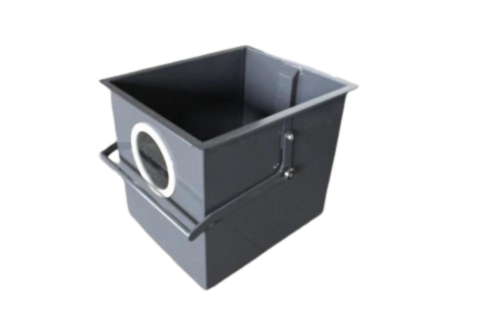

- 3 collecting baskets, each with a capacity of 200 l
- High-performance fan, designed to work with clean air, equipped with a branded premium electric motor S1, IP55 code with a power of 11 kW
- Fire protection system complete with sprinklers
- Control panel
