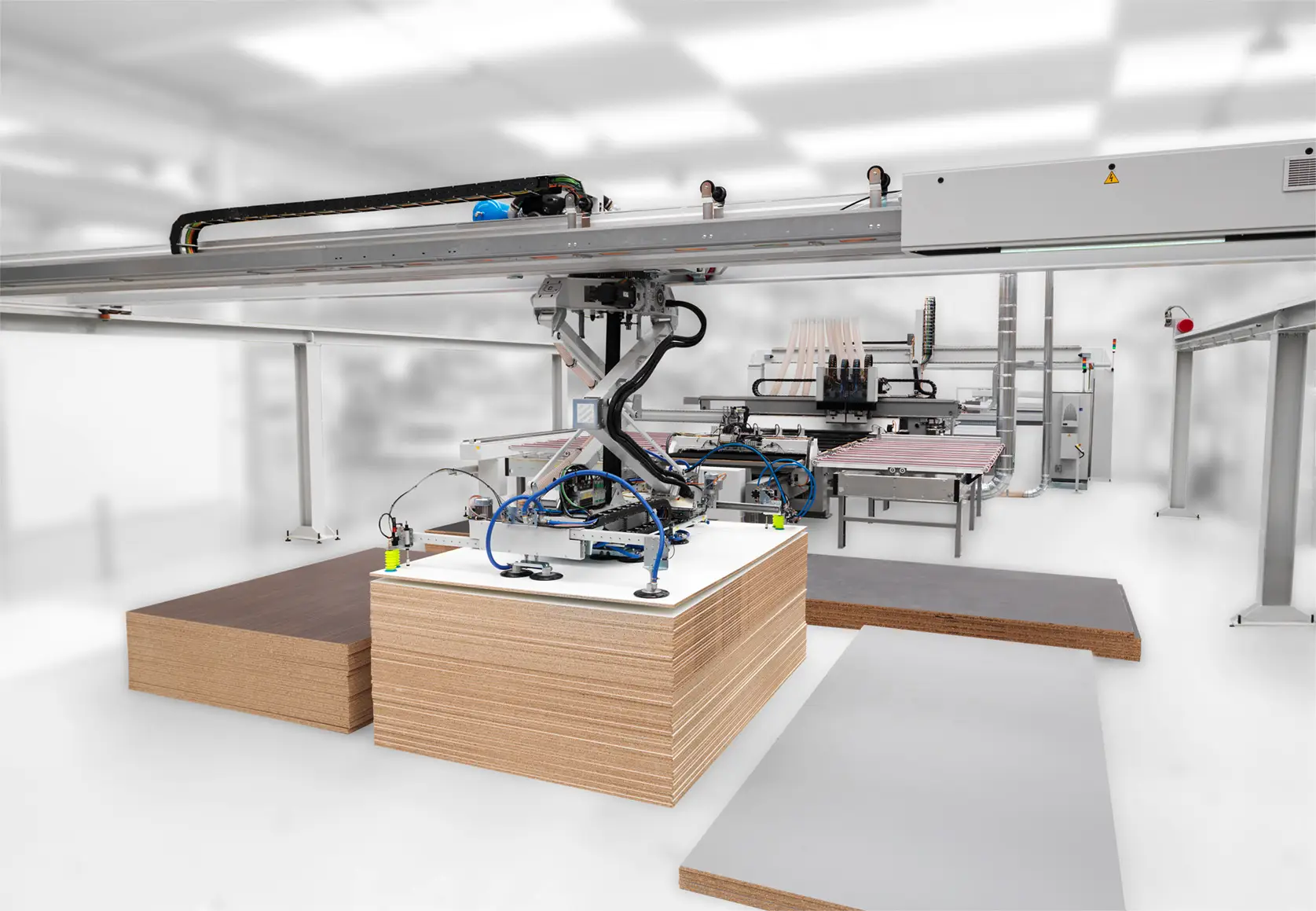

AUTOMATIC STORAGE SYSTEM BIESSE LOGIC X3

Description

• Max extension of the beam to a length of L = 18000 mm,
• 2 units. Additional side module extensions l = 3000 mm,
• Frame with vacuum suction cups, rotation range 0-270º,
• System for correct positioning relative to the sheets to be retrieved,
• Management of raw and thin panels,
• Management of thin panels wider than 1600 mm,
• Set to enhance performance for porous and thin materials,
• Panel weight control system,
• Equipment for connection to line supervision,
• Additional panel in the material feeding area,
• Camera for managing the safety zone (number of machines + number of loading points),
• Line communication,
• Loading/unloading point width – 2200 mm,
• Position for direct feeding/arranging using a forklift – 2800 mm.
