Description
- Usable width (A) [mm] 3000
- Total width (B) [mm] 3450
- Total depth [mm] 1500
- Total height (H) [mm] 3300
- Electric fan power [kW] 2.2
- Estimated air flow [m³/h] 8000
- Electric pump power [kW] 0.75
- Outlet pipe diameter [mm] 450

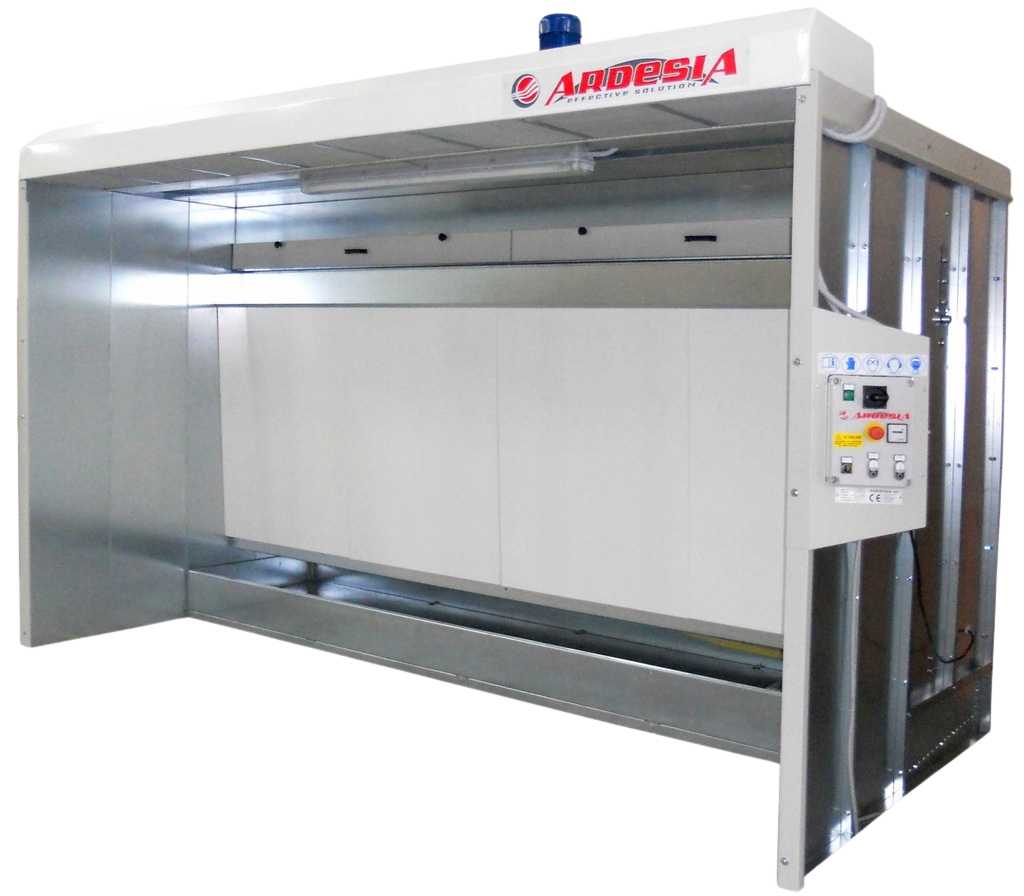

WATER PAINTING WALL ARDESIA SINGLE 3
This type of spray booth is suitable for extracting and removing contaminants and fumes emitted during spray painting with synthetic, organic, or water-based solvents. Their removal is carried out using a front water curtain and a second filtration system made of “Paint-Stop” absorbing filters. These booths are constructed from modular panels made of bent galvanized steel.
