Description

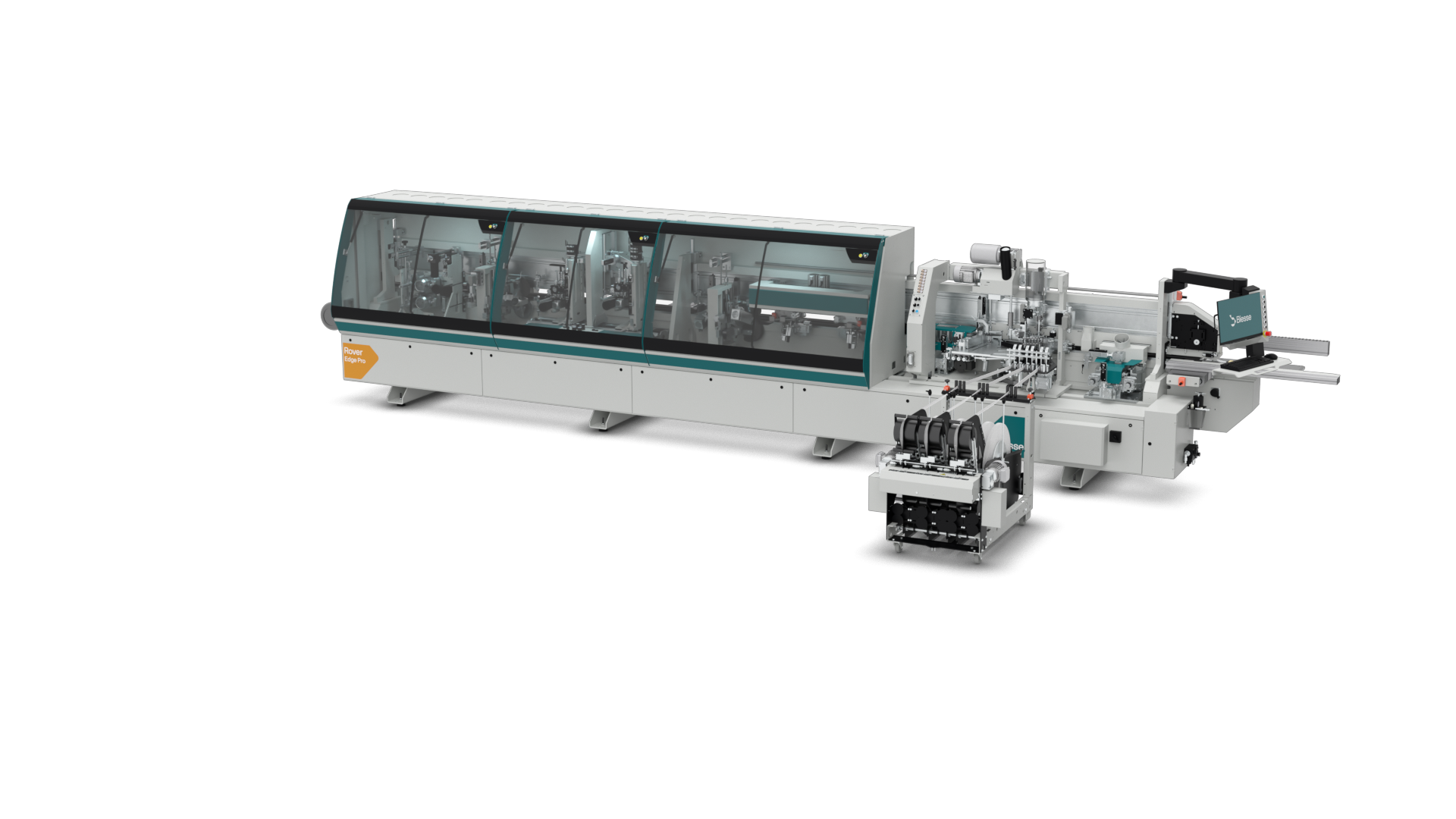

Single-sided edgebander for the application and processing of flat edge-banding material in coil and in strips.
- Description:
- Panel height: 10 – 60 mm,
- Chain advance speed: 10 – 20 m/min,
- Panel width: 100 – 3200 mm,
- Panel length: 120 – 3200 mm.
- Pre-Milling Unit Rt20. Min. Tool Rotation Speed 9000 Rpm,
- Gluing Unit Sp10,
- End Trimming Unit It90-P. End Trimming Unit Complete With 2 Servo-Driven With Motors. Min Speed 12000 Rpm,
- Rough Milling Unit Rs10. The Unit Includes 2 Overlapping Horizontal Axis Motors, Complete With Vertical Copiers. Min Speed 12000 Rpm,
- Fine Trimming Unit Rf40. Unit Comprising 2 Independent Motors. Min Speed 12000 Rpm,
- Multifunction Corner Rounding Unit Ar30. Complete With 2 Motors (0.65 Kw). Min Speed 12000 Rpm,
- Edge Scraper Unit Rb40,
- Glue Scraper Unit Rc20,
- Superimposed Oscillating Brushing Unit Sz30. The Unit Includes 2 Motors (0.37 Kw). Min Brush Rotation Speed 1400 Rpm,
- Hm20 Premelter For Eva Glue For Sp10, Sp20.
