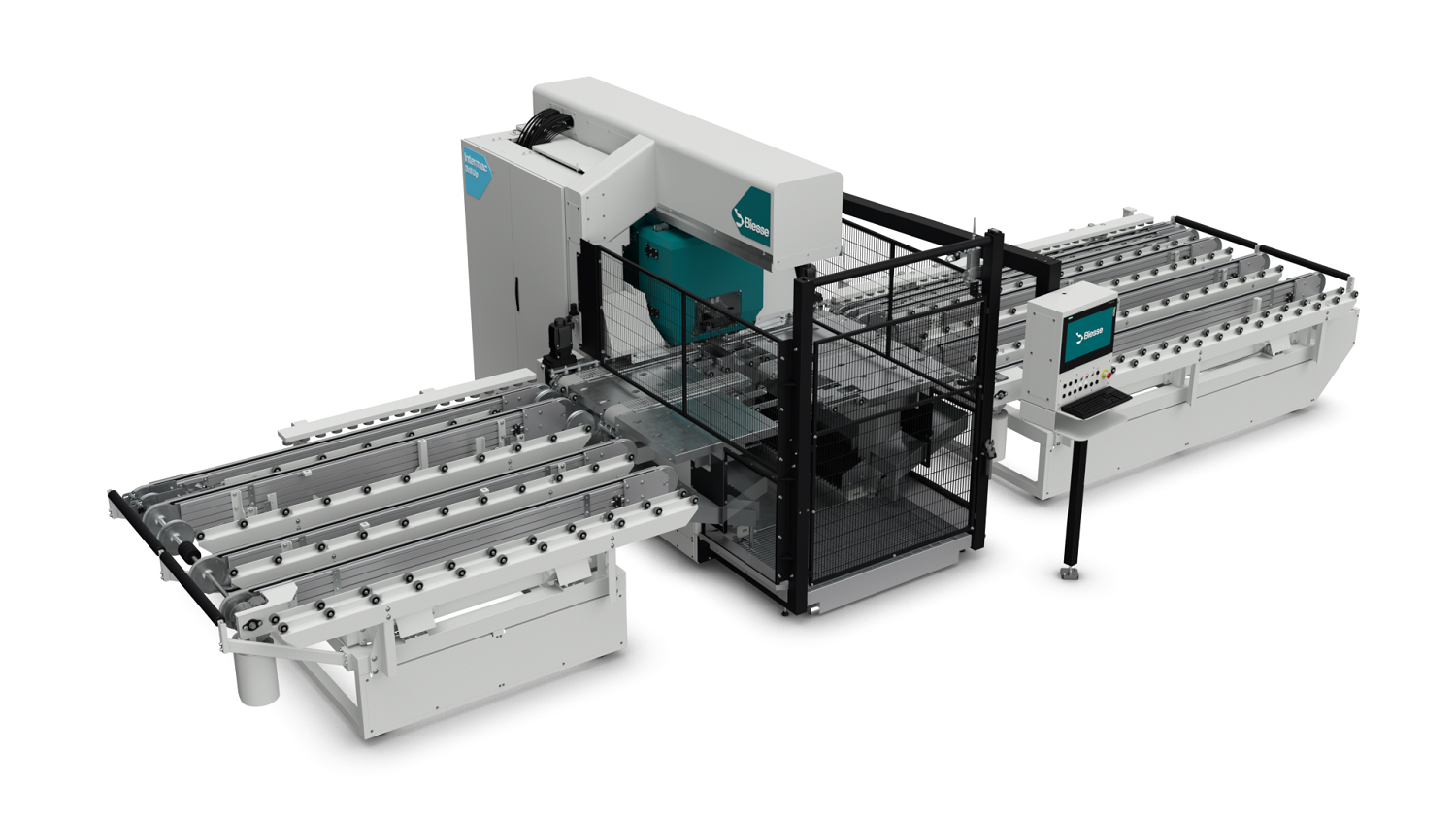

HORIZONTAL DRILLING MACHINE BIESSE INTERMAC DRILL UP B H FP ( FRANCESCA 16M 1600 )

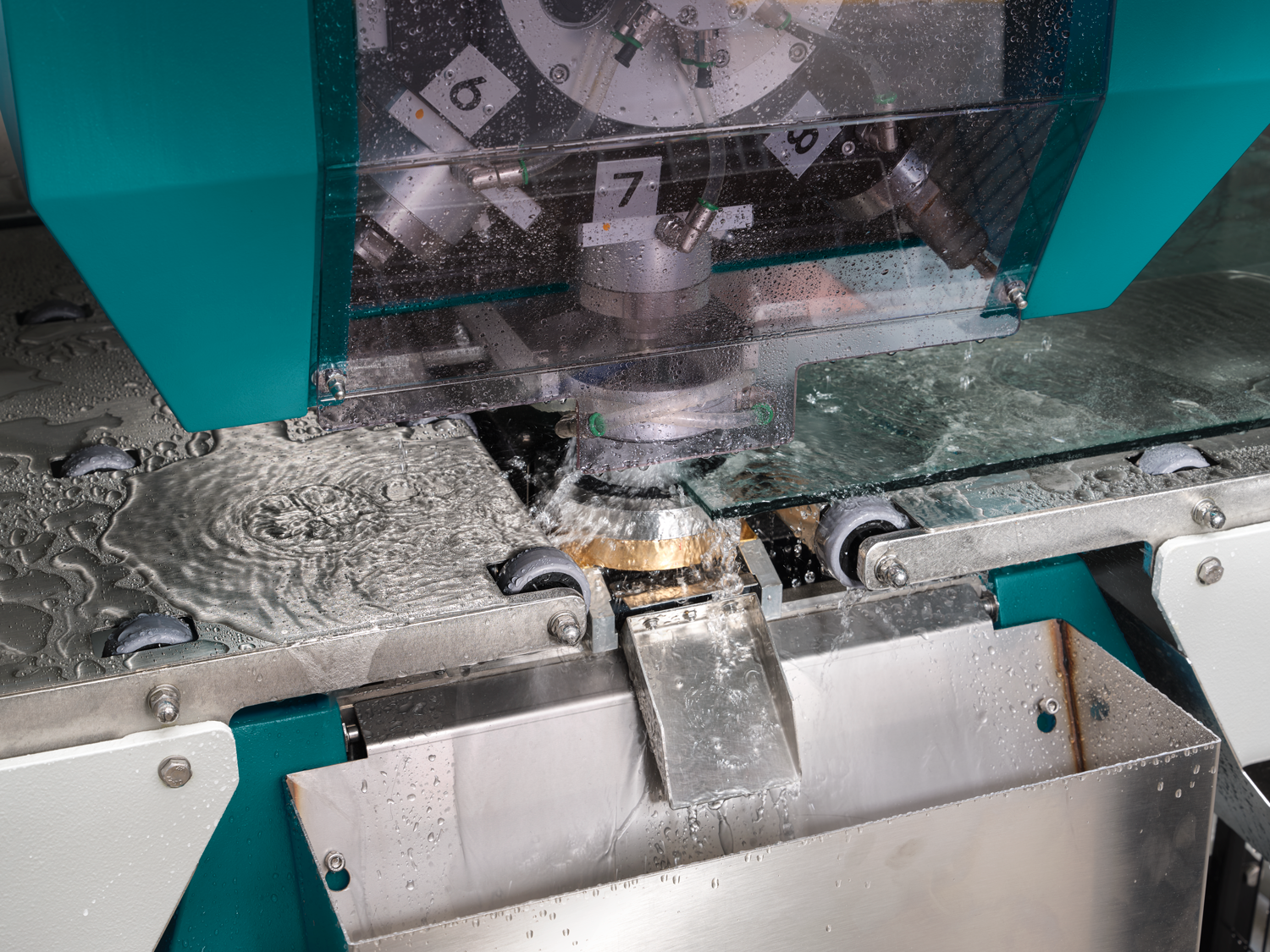

HORIZONTAL DRILLING MACHINE BIESSE INTERMAC DRILL UP B H FP ( FRANCESCA 16M 1600 ) - Image 2

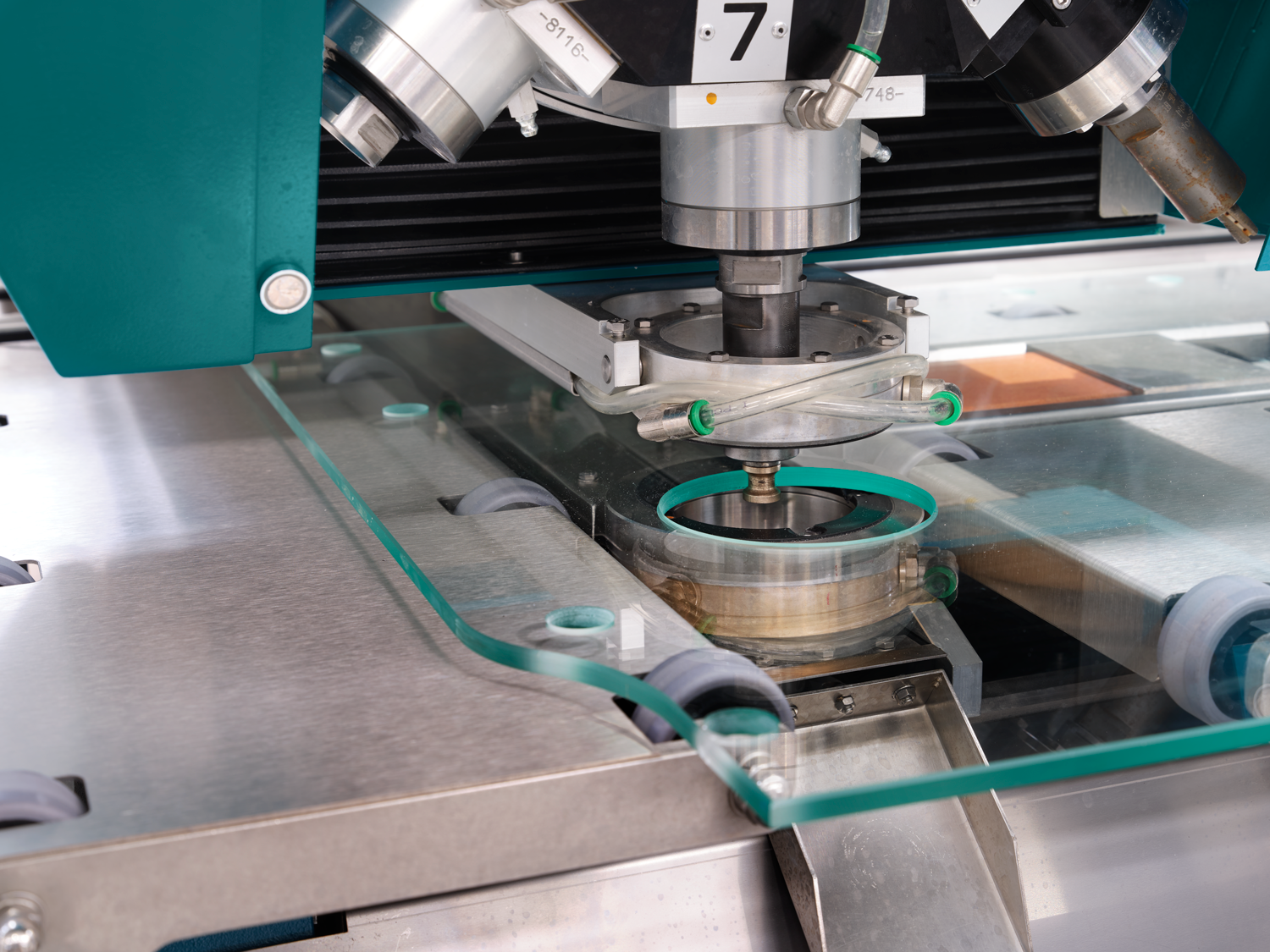

HORIZONTAL DRILLING MACHINE BIESSE INTERMAC DRILL UP B H FP ( FRANCESCA 16M 1600 ) - Image 3

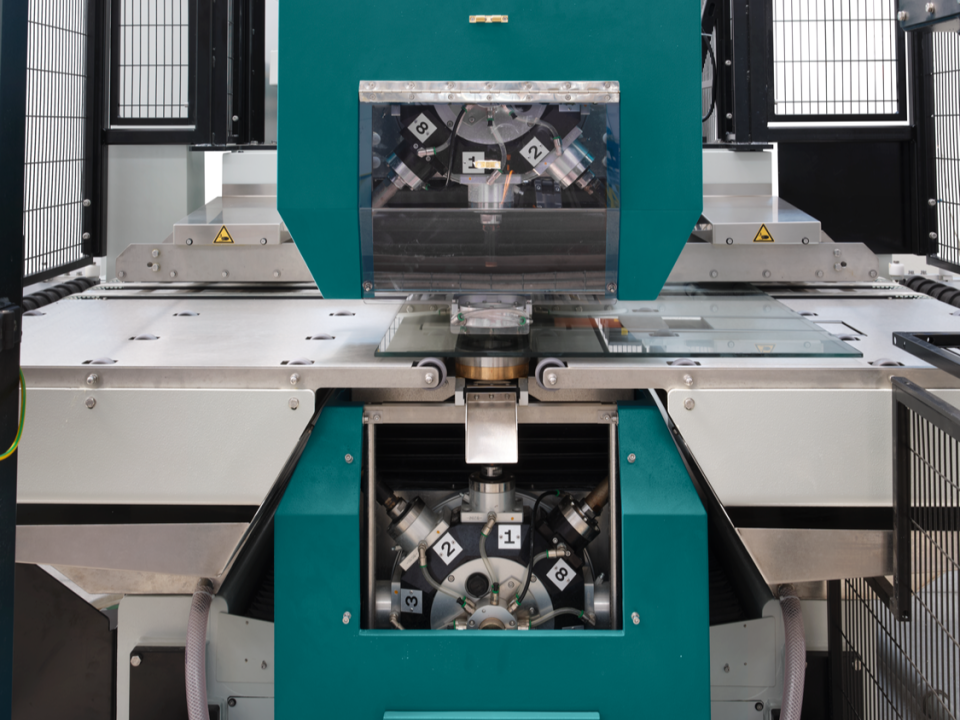

HORIZONTAL DRILLING MACHINE BIESSE INTERMAC DRILL UP B H FP ( FRANCESCA 16M 1600 ) - Image 4

HORIZONTAL DRILLING MACHINE BIESSE INTERMAC DRILL UP B H FP ( FRANCESCA 16M 1600 )

Flexible batch-one NC processing center designed for standard and low-E glass, featuring automatic handling and capable of performing drilling, milling, and countersinking on both straight and out-of-square pieces.

Categories: ,

Description

NC processing centre for drilling, milling and countersinking glass sheets with unprecedented performance and flexibility.

Glass working NC drilling centres capable of performing drilling, countersinking and milling operations on flat glass sheets, including “out of square” pieces.



Technical Specification
Size 1600
Max workable glass XY 1 Conveyor x 1600mm
Min workable glass XY 2 450 x 155mm
Workable glass thickness 3 – 19mm (25mm)
N° of heads / spindles 2/8
Max drilling diameter 65mm (70mm)
Low-E processing Yes
Infeed conveyor 1200mm
Outfeed conveyor 1200mm
Infeed / Outfeed conveyor Automatic
Loading mode Manual (Automatic)
Max glass weight 230Kg
1  Limited by conveyor’s length
2  350mm drilling Only
Values within brackets ( ) are optional features
