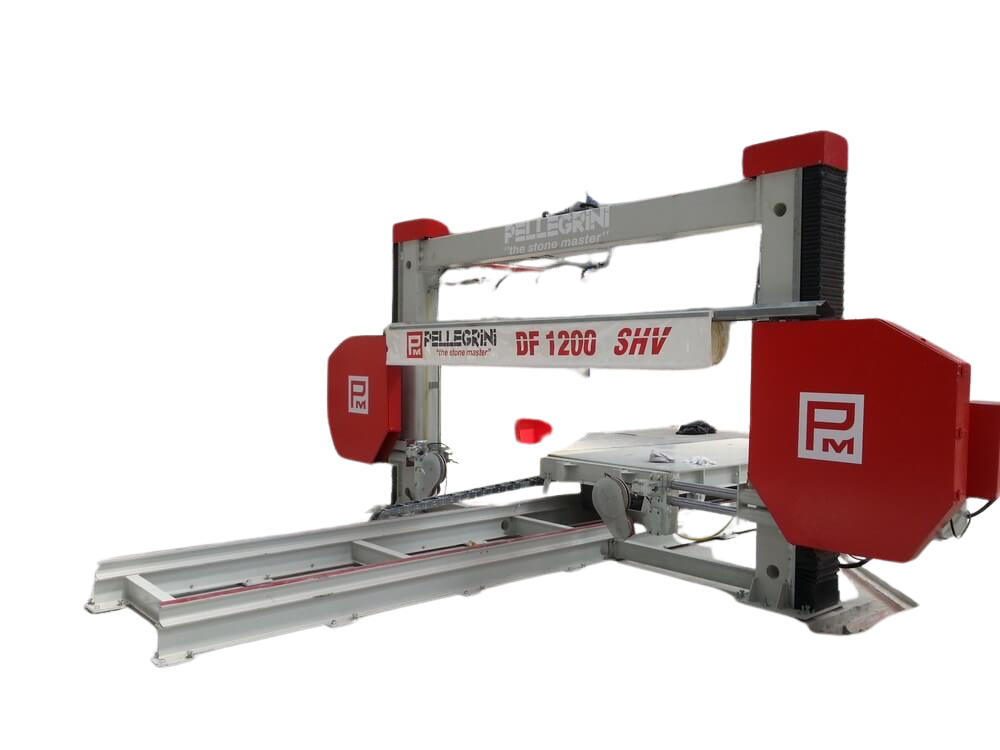

BLOCK CUTTING PELLEGRINI DIAMANTFIL DF 1200 SHV

BLOCK CUTTING PELLEGRINI DIAMANTFIL DF 1200 SHV

Stationary diamond rope with 4 controlled movements, allowing for the following operations: horizontal cutting of slabs, including those made of very delicate materials; vertical and automatic cutting of slabs and/or thicknesses from small blocks; cutting of two-dimensional profiles from small blocks and/or large blocks.

Categories: ,

Description

  • Max. cutting width: 2.5 m
  • Max. cutting height: 1.2 m
  • Usable stroke of the trolley
  • Main motor: 7.5 kW
  • Total installed power: 14 kW
  • Voltage: 400V 50Hz
  • Diamond rope length: 14.85 m (rope not included in the offer)
  • Expected max. rope diameter: 8.5 mm

Also available in the mobile ROLLER version.
