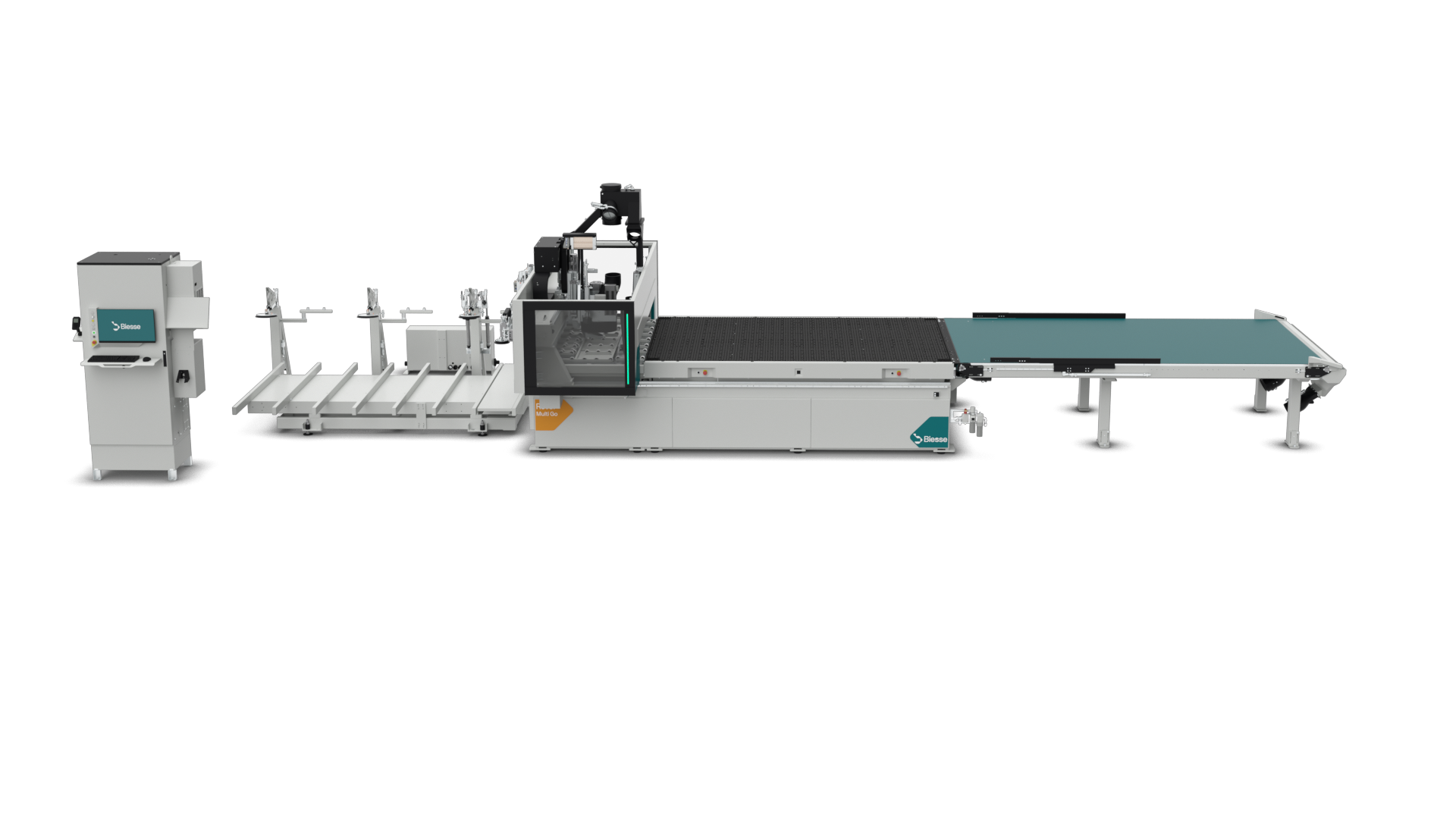

Description
- HFT or FTPLUS worktable dimension:
- X=3100mm,*
- Y=2205mm,*
* The dimensions indicate the distance between the stops in X and Y respectively; the maximum size of the panel that can be loaded automatically in Y is equal to the distance between the stops minus 5 mm.
- 16-zones Multizone vacuum system,
- N. 3 290 m3/h rotary claws vacuum pump,
- Automatic Loading and Unloading System (Sweeping Arm + Loading grippers),
- Scissor Lift – Size 2231,
- Outfeed Belt Conveyor – Size 2231,
- 19.2 kW (25.7 HP) Electrospindle with HSK F63 adaptor and liquid cooling,
- Liquid chilling unit for liquid cooled systems,
- Rollers Hold-down unit with positioning under the beam,
- 8 positions Revolver Toolchanger, positioned on the Y axis carriage,
- BH10 Boring Head,
- BSolid 3D CAD-CAM program to design, simulate and manage the machining processes,
- bNest – Software module for nesting process applications,
- bNest – Graphic editor for manual editing of nesting results.
