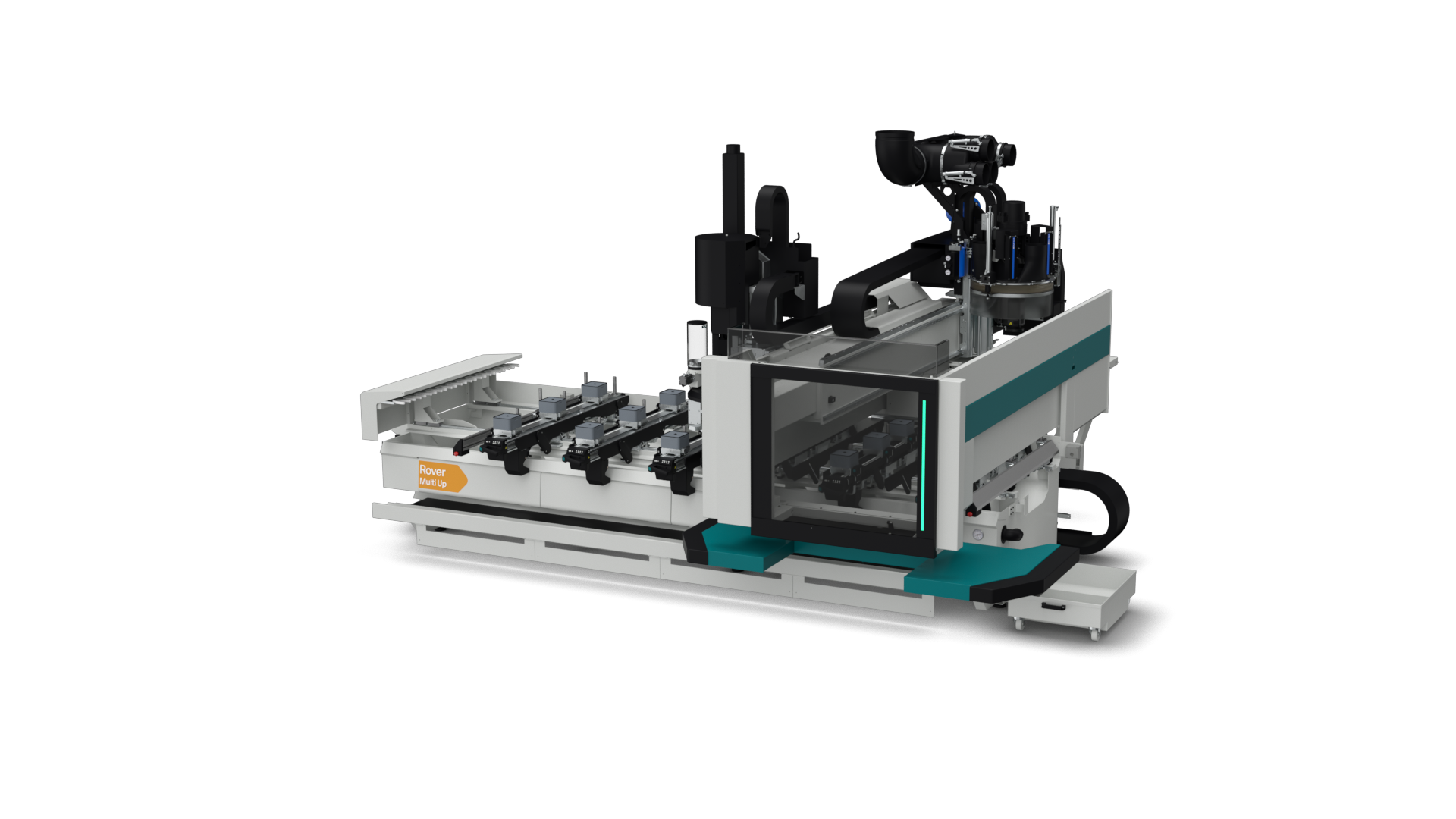

CNC EDGEBANDING MACHINING CENTER BIESSE ROVER MULTI UP S C 1632 (BIESSE ROVER A EDGE 1632)

Description

• Working fields for the main electrospindle – Right Y axis (*):

1. X = 3.280 mm,
2. X pendular = 1.100 mm,
3. Y = 1.600 mm,
4. Z = 200 mm,

• Working fields for edgebanding unit – Left Y axis (*):

1. X edge = 2.300 mm,
2. Y edge = 1.500 mm,
3. Z edge = 60 mm, (no pendular machining)

• Edgebanding unit,
• 6 ATS panel supports – 24 sliding bases,
• SA working table (Set-Up Assistant). Manual working table positioning system aided by direction and position lights,
• 6 szt. Stop of the back line with a stroke of 115 mm and extension of 25 mm,
• 6 szt. Stop of the middle line, positioned at 670 mm, with a stroke of 140 mm,
• 6 szt. Stop of the middle line, positioned at 1230 mm, with a stroke of 140 mm,
• 4 Side stops with a stroke of 140 mm (2 Lh + 2 Rh) inclusive of the pneumatic system,
• 2 Additional side stops with a stroke of 140 mm (1 Lh + 1 Rh),
• 250 m3/h rotary claws vacuum pump,
• Belt conveyor for chips and off-cuts removal,
• 13.2 kW (17.7 HP) Electrospindle with HSK F63 adaptor and air cooling,
• 360° rotation interpolating unit – Torque C-Axis,
• Boring head BH 17 L,
• 16 positions Revolver Toolchanger, positioned on the X axis carriage,
• PUR Glues in granules. System for the use of PUR glues in granules,
• Edgebanding container for 2 coils, placed on the X carriage of the machine,
• Combined edge-trimming / edge-scraping / glue-scraping aggregate EF60B with complete equipment of tools with thickness 2,0 mm,
• BSolid 3D CAD-CAM program to design, simulate and manage the machining processes,
• bEdge – module for the application and finishing of banding material.
