Description

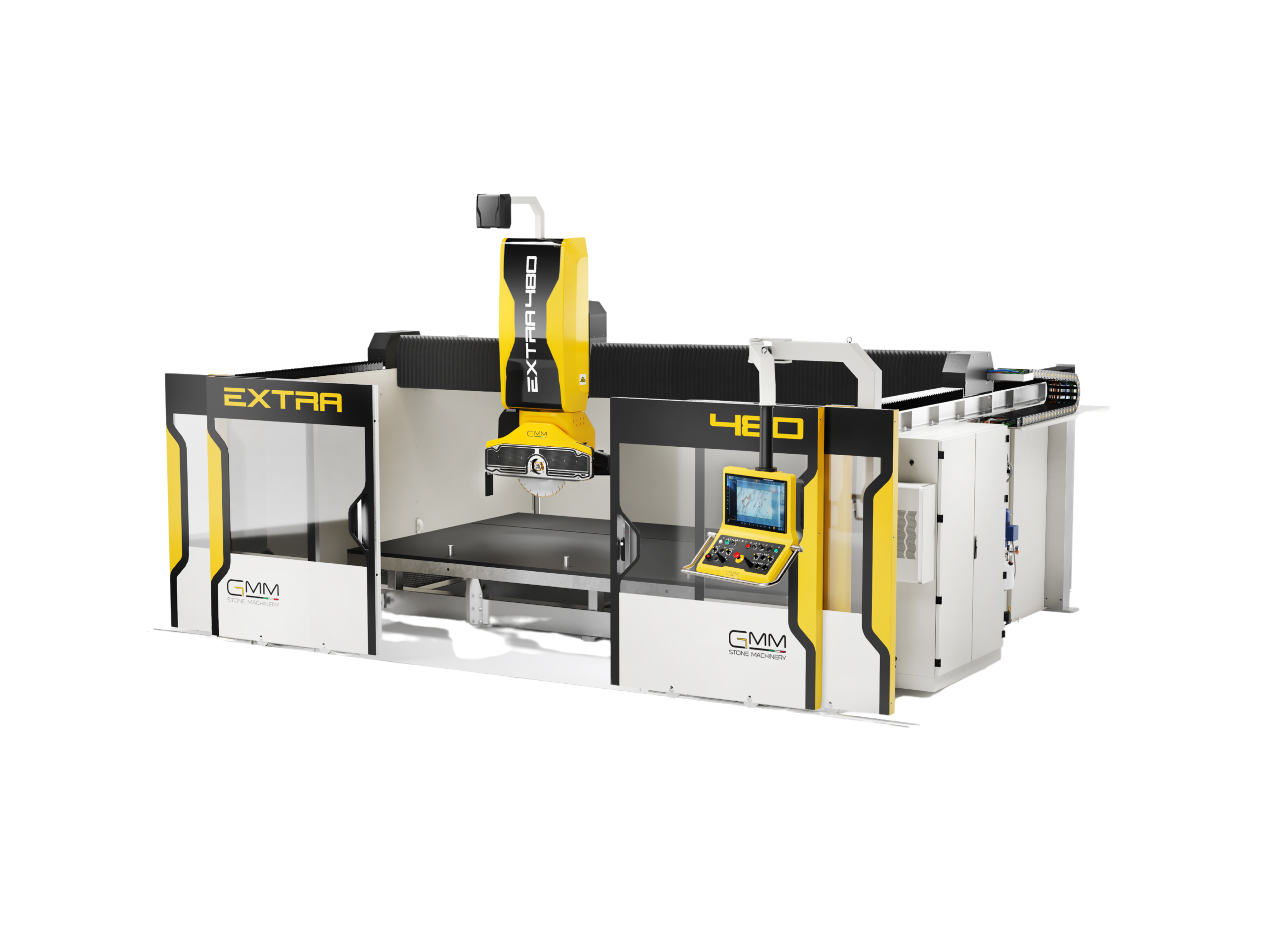

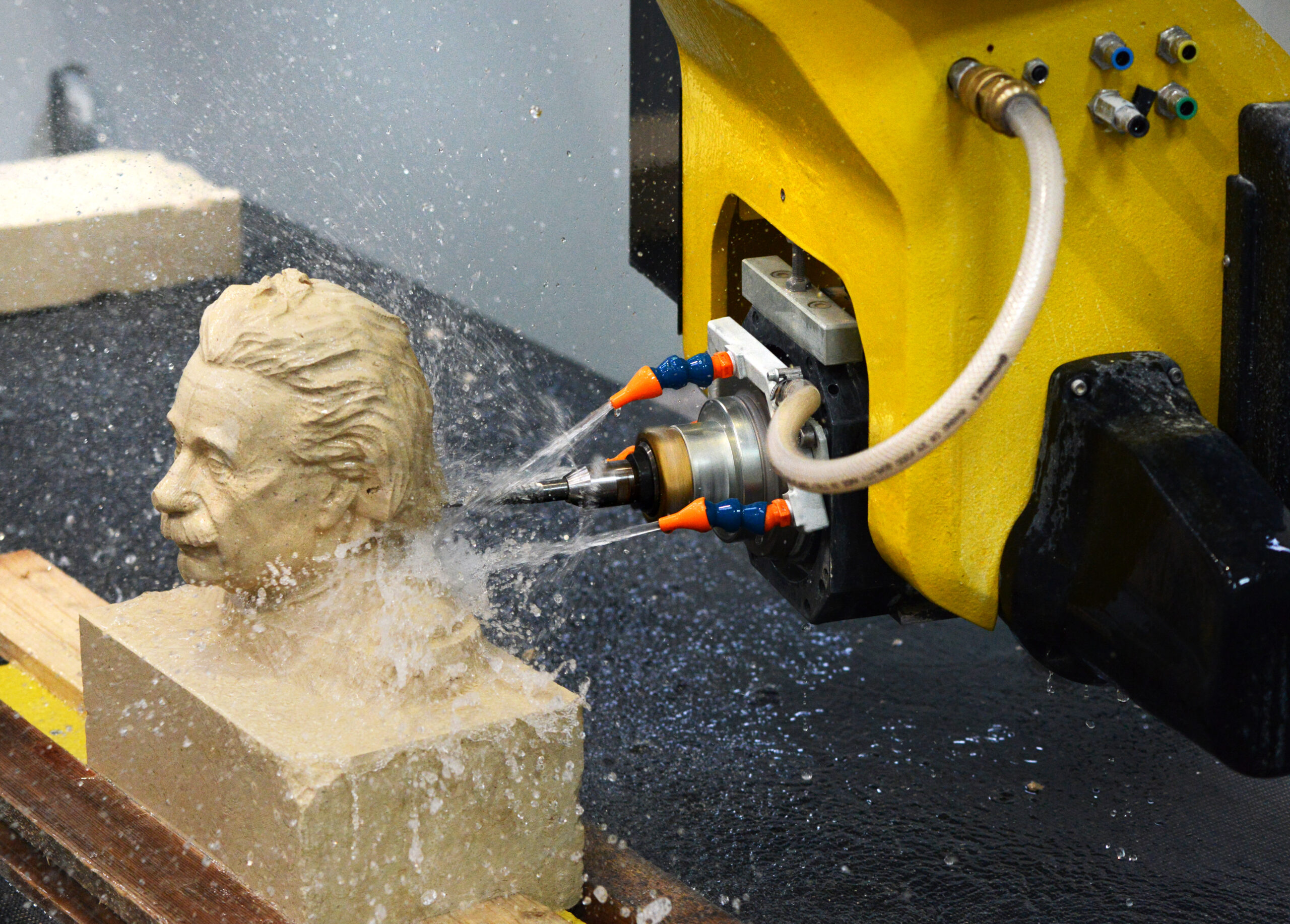

The machine combines extreme ease to use concept and intuitive programming. Extra 480 offers cad cuts, contouring, profiles and shapes, drilling, coring, bas-reliefs and lettering, offline programming.
- 370° rotating head, 90° tilting head

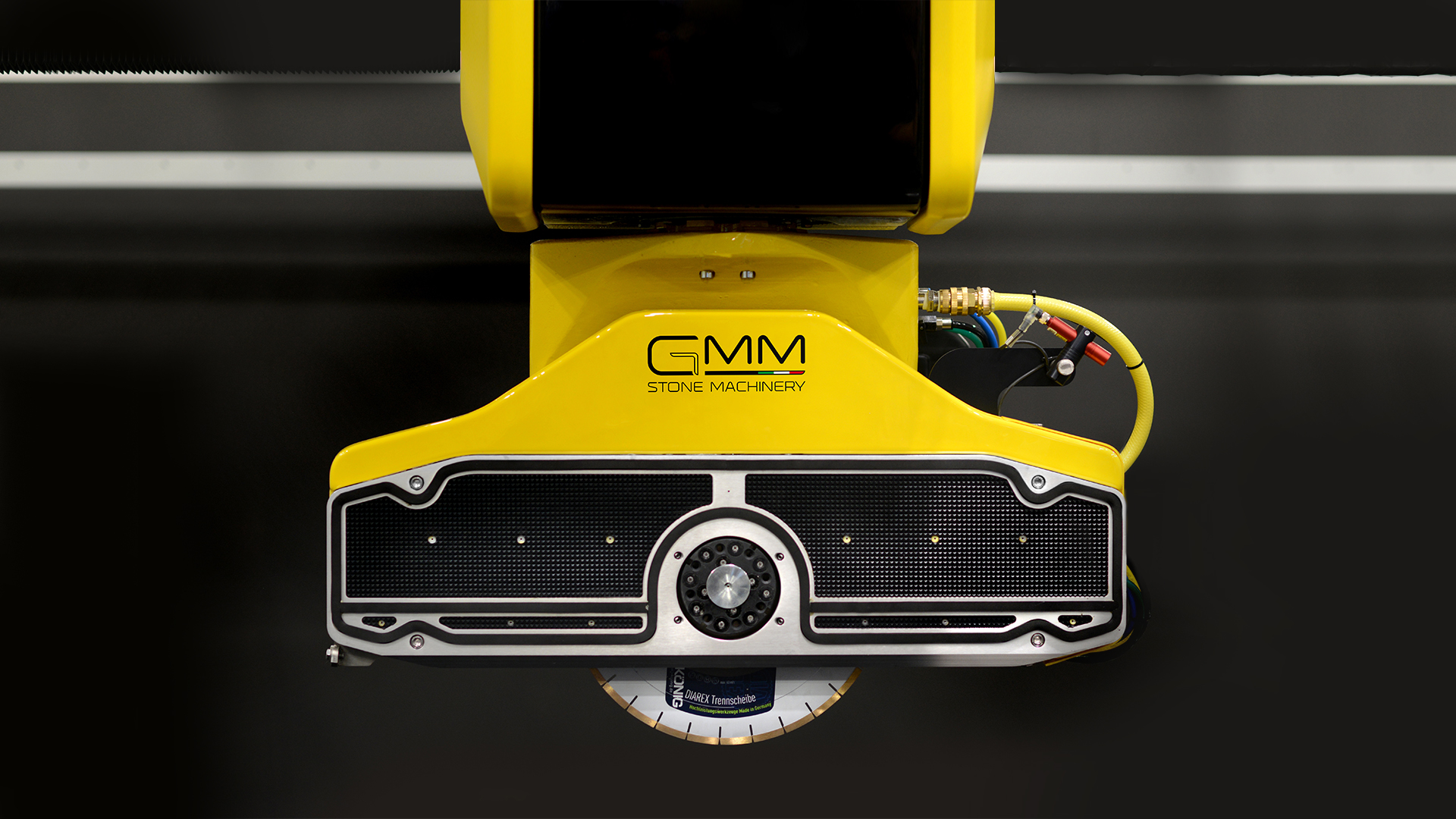

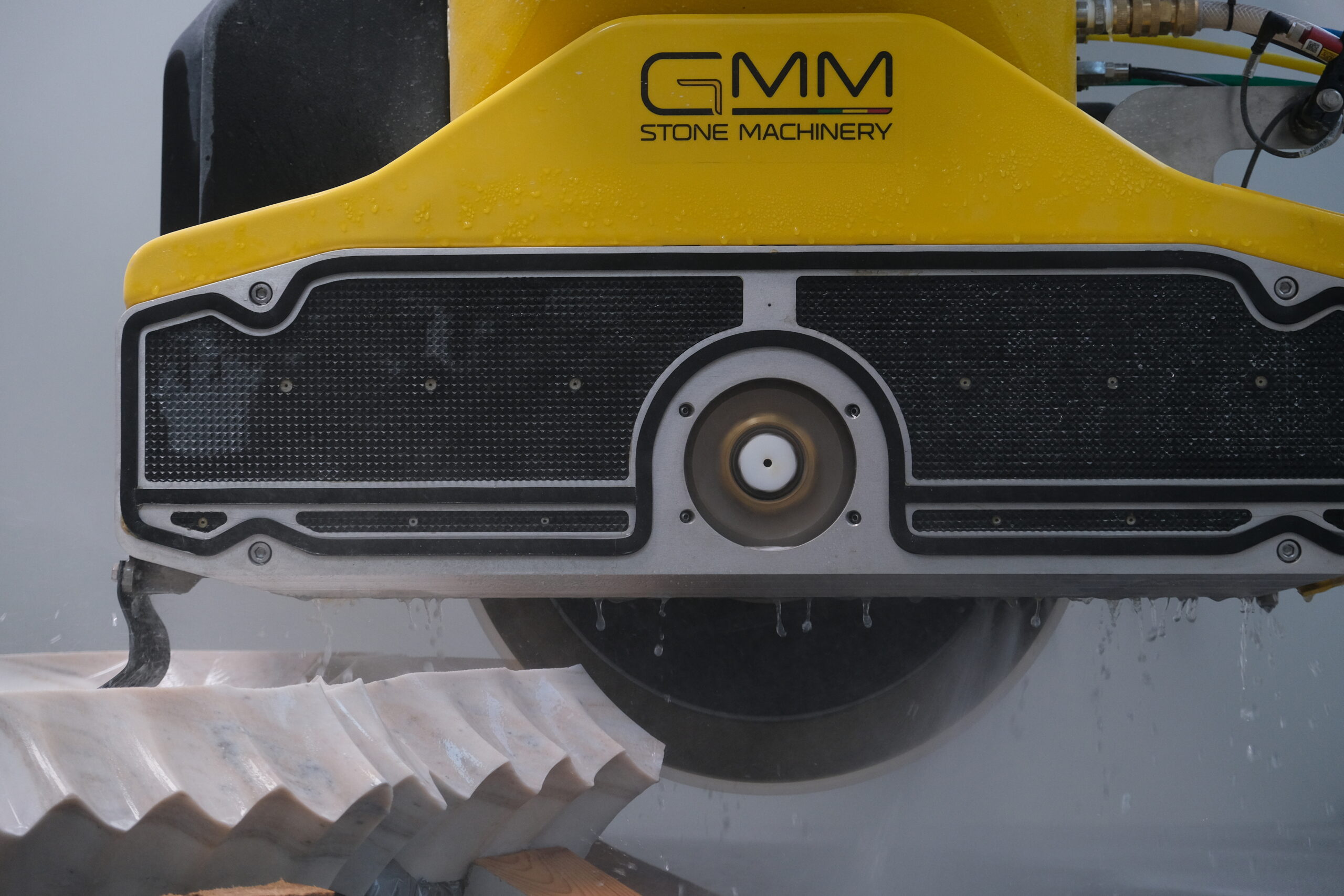

- Blade up to 625 mm (25 inches) diameter driven by frequency converter
- Vertical stroke (Z axis) of 480 mm (16 inch)
- Standard machine rails (Y axis) 3250 mm
- The main structures of the machine are in hot galvanized steel
- Automatic lubrication
- Sliding Safety barriers with polycarbonate panels with high visibility
- High speed, maximum precision thanks to brushless motors with absolute encoders, recirculating ball guides, precision gearboxes and interpolation of the axes with CNC
- 6000 rpm electrospindle with shaft drilled for water passage

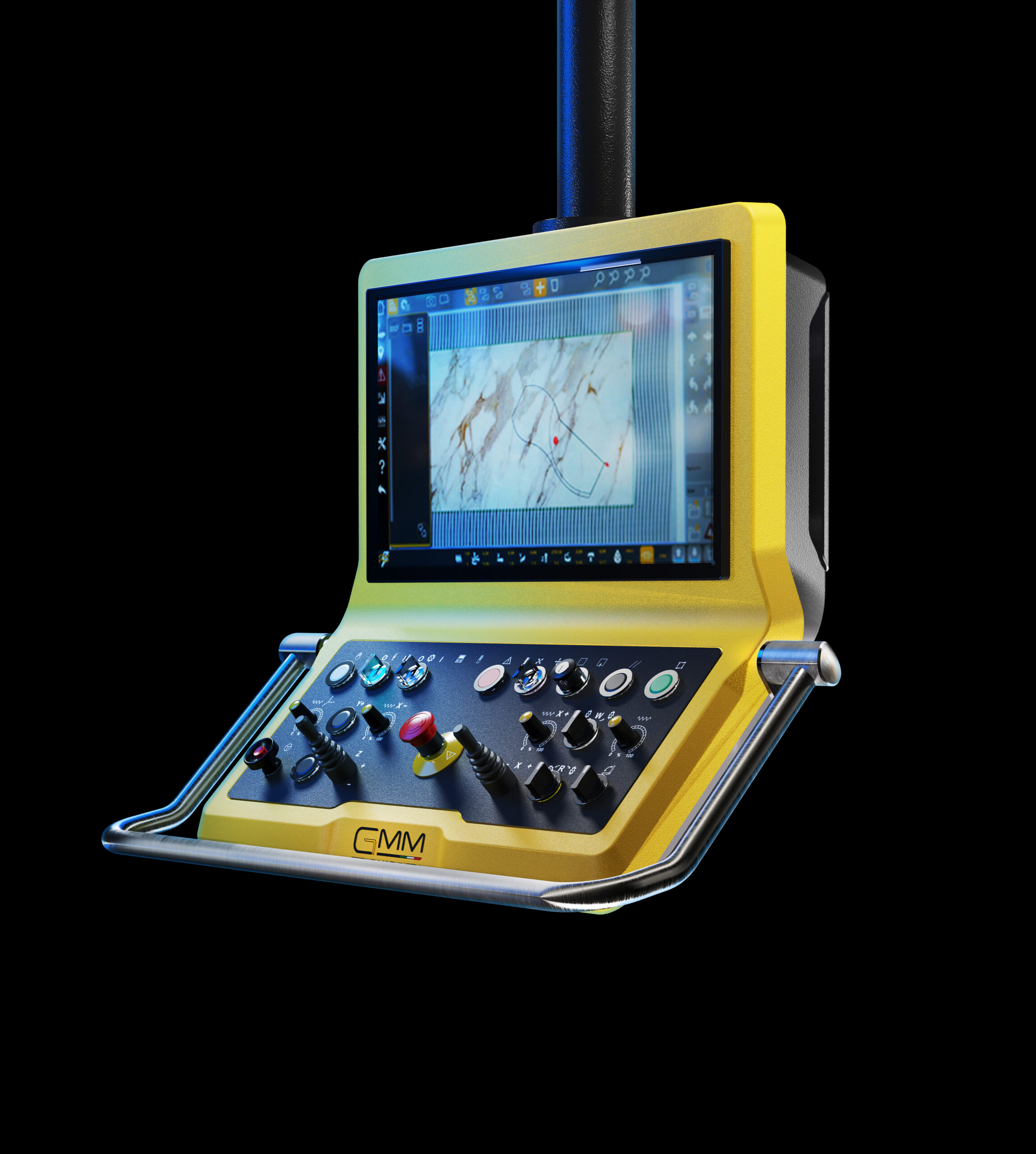

- New Ergonomic Panel 21” multitouch LED color display with integrated machine controls, programming and control unit, USB port, LAN connection and remote service system
- Hydraulic tilting table driven by hydraulic cylinder with dedicated hydraulic power unit, structure in hot-dip galvanized steel with PVC table top
- Vacuum system with 3 sections

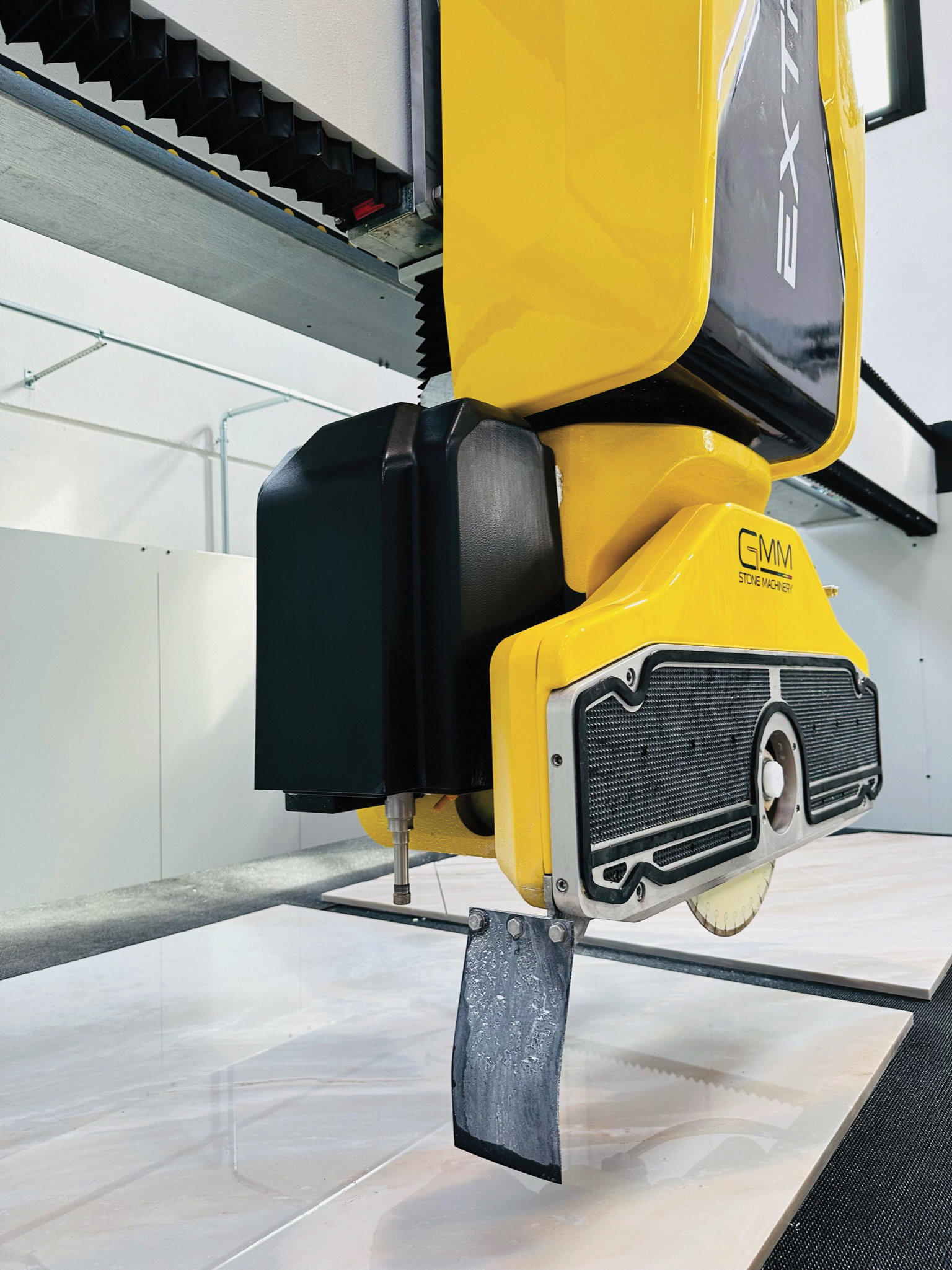

- Side Aggregate Spindle 4 kw
OPTIONAL EQUIPMENT
- Four position magnetic tool changer for auto changing core bits and router tools
