Description
| Max blade diameter Ø | 625 mm |
| Max cutting depth | 205 mm |
| Max Z axis stroke | 480 mm |
| Head rotation | 370° |
| Head titling | 90° |
- The main structures of the machine are in hot galvanized steel
- Automatic lubrication
- Sliding Safety barriers with polycarbonate panels with high visibility
- High speed, maximum precision thanks to brushless motors with absolute encoders, recirculating ball guides, precision gearboxes and interpolation of the axes with CNC 6000 rpm electrospindle with shaft drilled for water passage
Unlock your machine’s full potential with the right software.
Precision, efficiency, and advanced features tailored for every application.
New Ergonomic Panel 21” multitouch LED color display with integrated machine controls, programming and control unit, USB port, LAN connection and remote service system
Camera
Hydraulic tilting table driven by hydraulic cylinder with dedicated hydraulic power unit, structure in hot-dip galvanized steel with PVC table top
Vacuum system with 3 sections
Slab probe

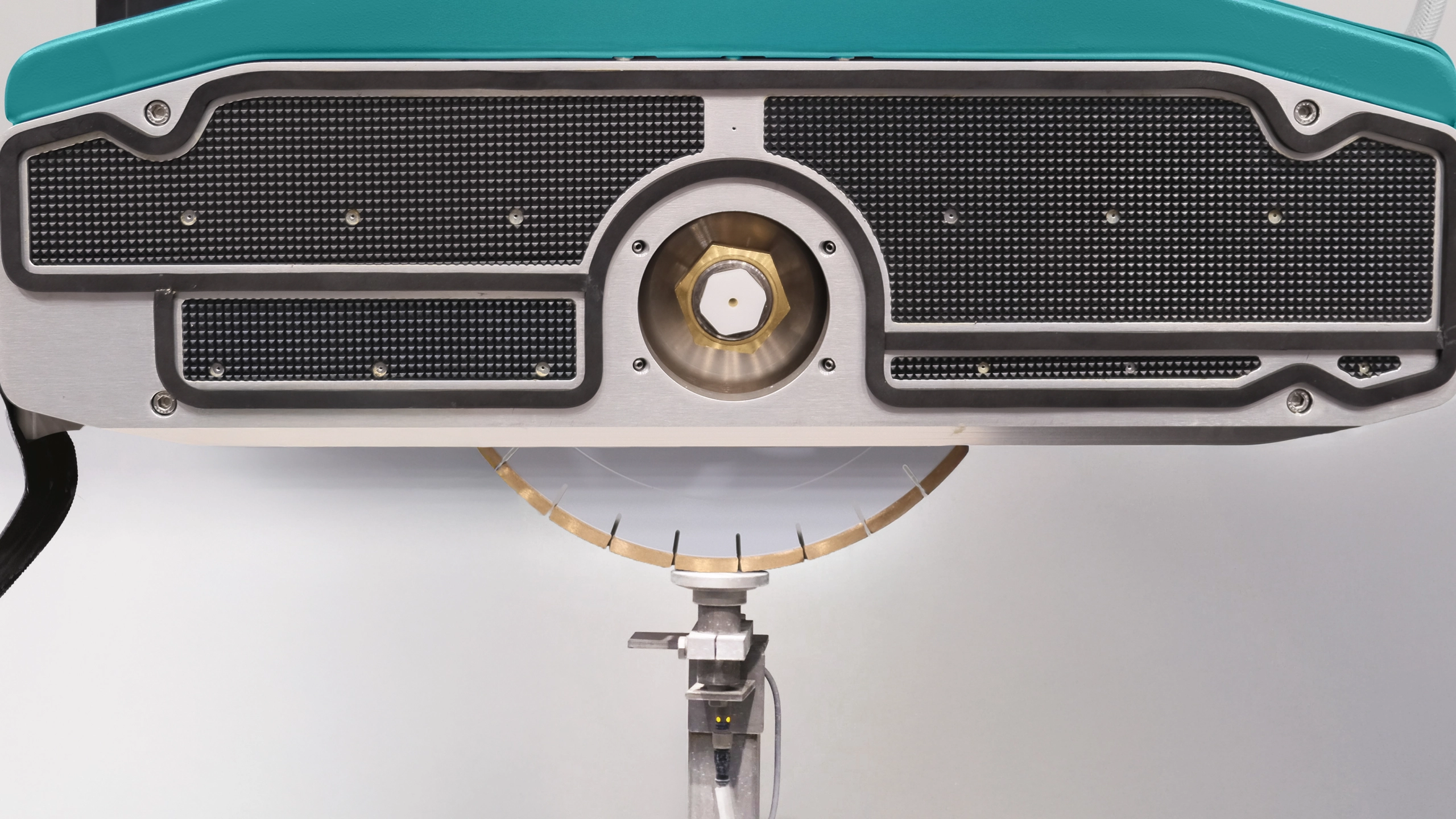

Tool probe
Additional Side Spindle aggregate for routing with up to 12000 RPM
Don’t waste time changing tools
The Master Cut GO C M can be equipped with a side spindle, delivering high cutting power for machining tasks such as milling and drilling, both through and blind.

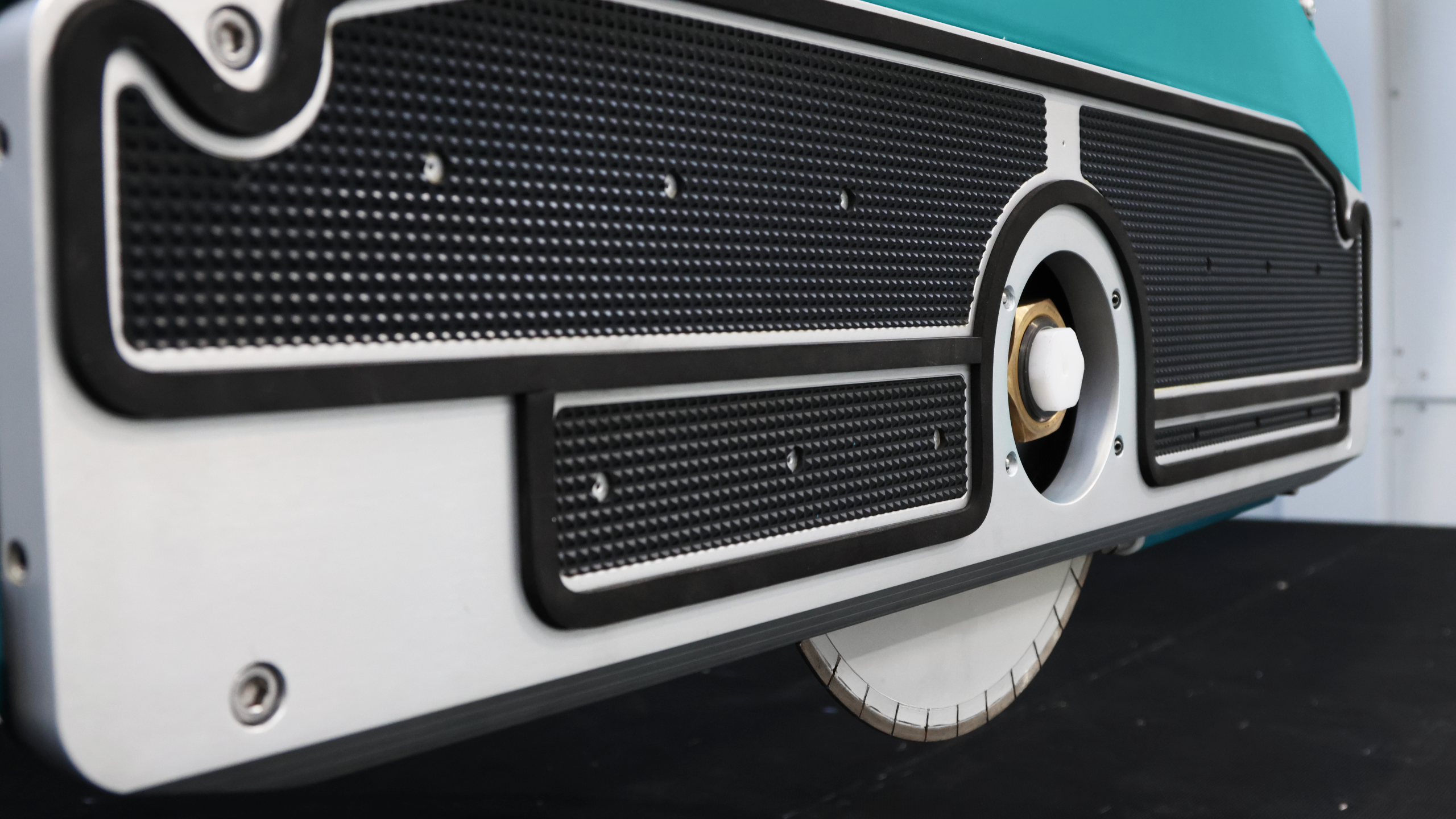

The router, saw blade, and suction cups integrated into the head can work sequentially within the same process. As a result, the overall process duration is significantly reduced. This combination simplifies the production of kitchen and bathroom countertops.
A mechanical lock, integrated into the up-and-down mechanism, prevents tool vibrations during machining, ensuring an excellent surface finish.
OPTIONAL EQUIPMENT
- Four position magnetic tool changer for auto changing core bits and router tools
