Description
DIMENSIONS:
- Length: 10,200 mm
- Width including photoelectric barriers: 4,200 mm
- Height: 3,400 mm
- Weight: 4,500 kg
MACHINE WORKING DIMENSIONS:
- Max. glass working size [x,y]: 2500 x 1500 mm
- Min. glass working size [x,y]: 500 x 320 mm
- Working thickness: 4 – 15 mm
- Max. drill diameter: 50 mm
- Spindle rotational speed: 0-12,000 rpmOptions includedPL2510955

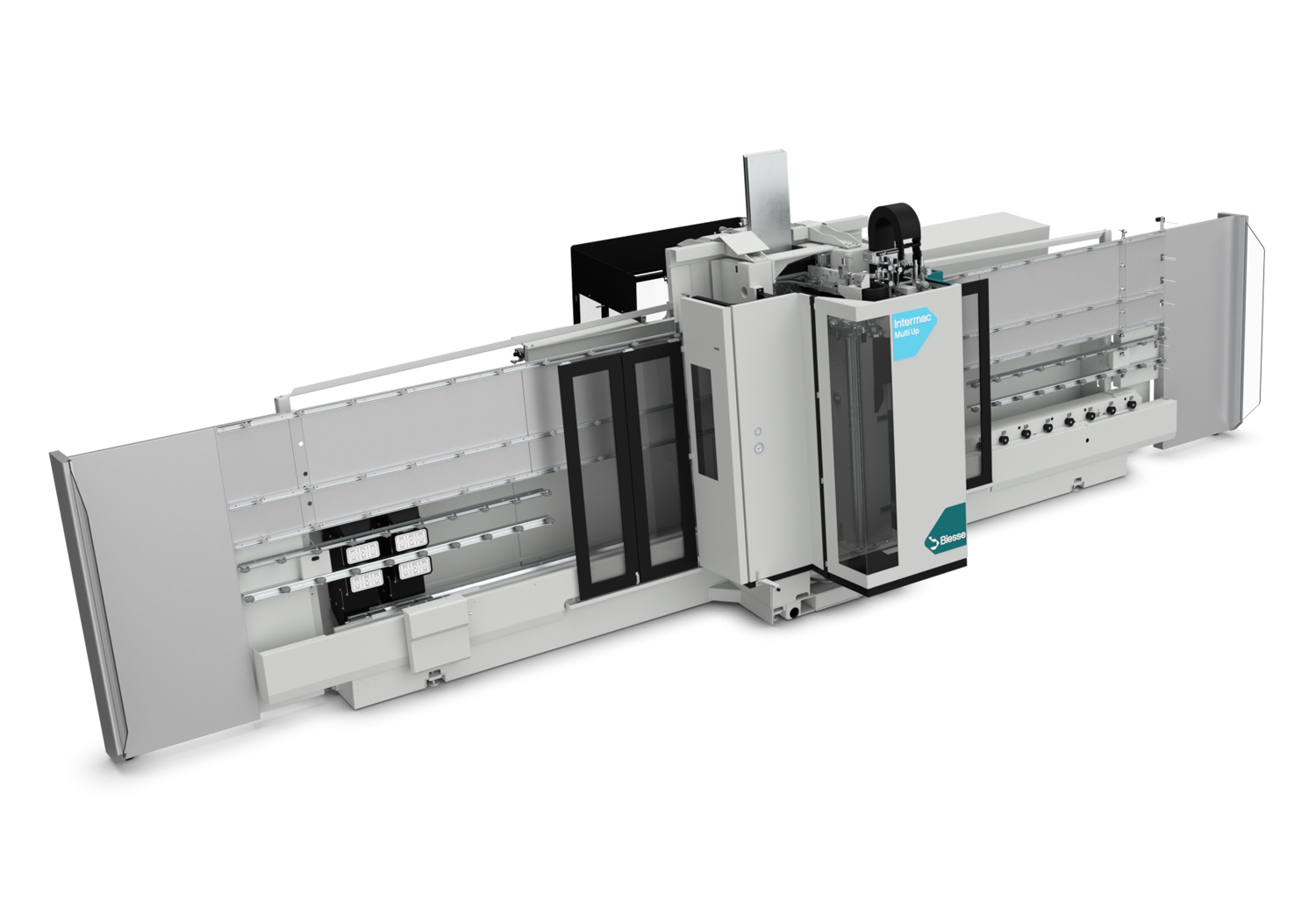

Intermac Multi Up M V0X V Glass Regular
PCC4004252
Left-hand upload and right-hand download modul
PCC4036075
Dressing device for polishing wheels and relevant management software, for front head
PCC4050098
Not motorized roller conveyor for maximum work piece extension from 2500mm to 3000mm
PCC1802026
Support system for light glasses
PCC1802021
Pedal for unloading unstable glass and software process management
PCC4041672
6 pcs. – ISO 40 cone for drill bits or routers
PCC4041673
6 pcs. – ISO 40 cone for grinding/polishing tools, shaft 22×34 mm
PCC4041674
6 pcs – ISO 40 cone for stacked wheels, shaft 22×50 mm (maximum tool package height 40 mm)
