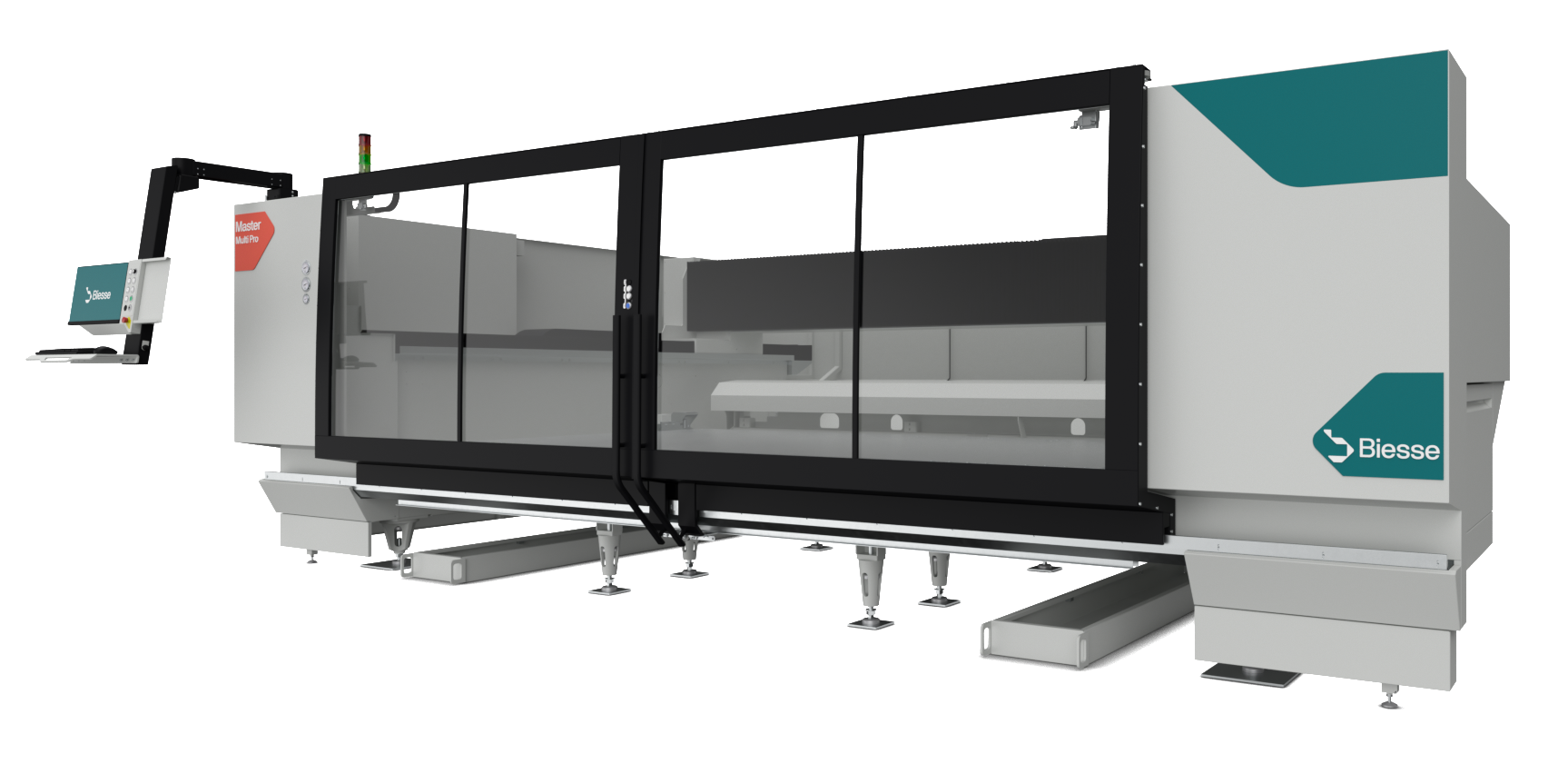

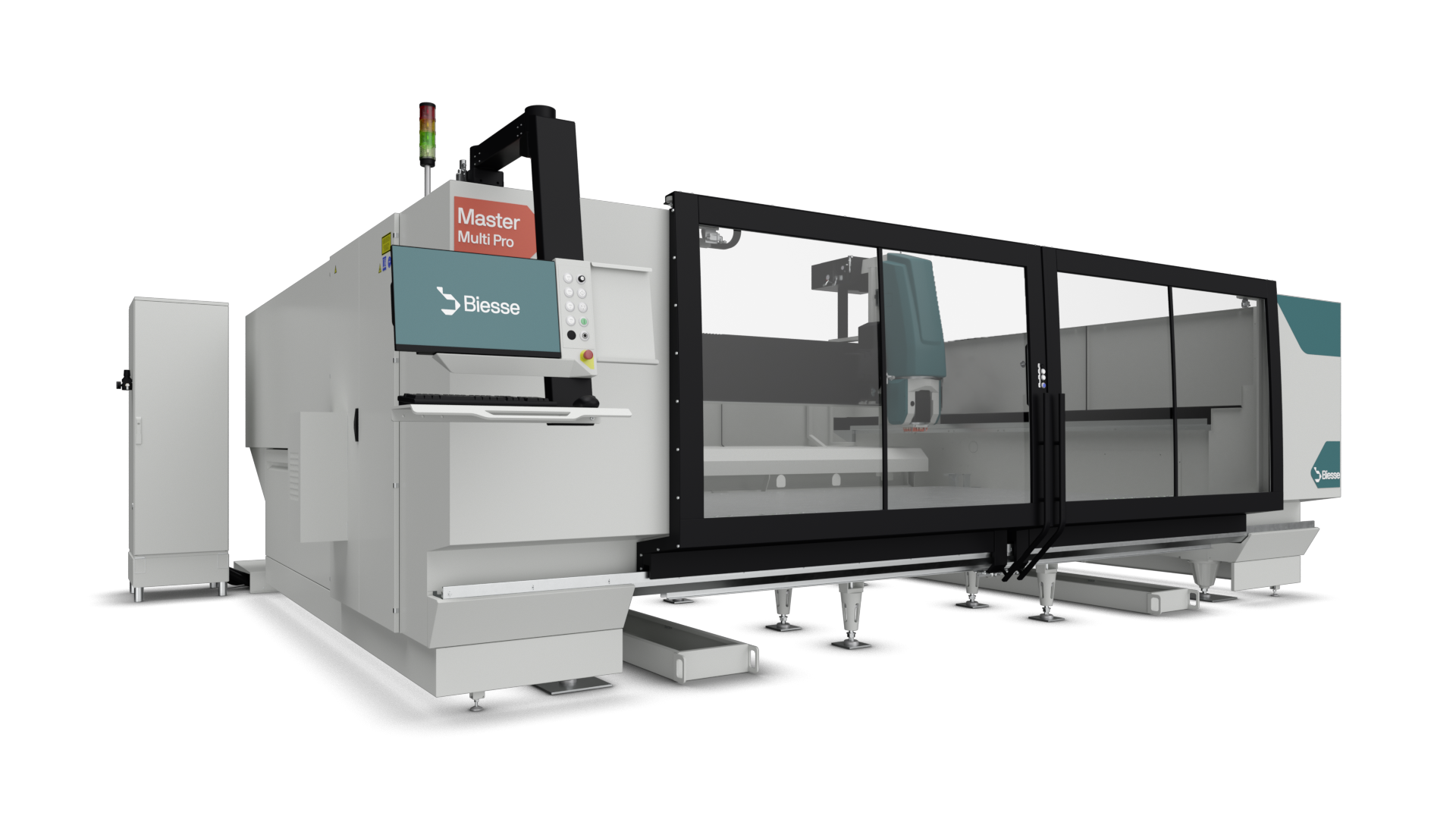

CNC BIESSE MASTER MULTI PRO S MS MX SERIES

Description

MASTER MULTI PRO S MS MX – 3 axis high-performance CNC stone machining center, equipped with new rack and double pinion technology and linear guides with ball bearings, uses brushless motors that guarantee durability and smooth and precise movements.

Version M3 and M5 axis

TECH INFO	33	38
Max working area	3400 x 1700 mm	3900 x 2100 mm
Max workable piece	3300 x 1600 mm	3800 x 2000 mm

Forget about machine setup — one setup is all you need for the entire production run!

The Master Multi Pro S MX automatically creates a matrix of suction cups tailored to differently shaped pieces, requiring only one table setup with automatic suction cup activation. This smart system delivers significant time savings and increases productivity by over 30%, ensuring a high return on investment.



This basic configuration features a 5-axis head for complex machining projects, a 15 kW electro-spindle, and an automatic tool changer with 23 or 45 positions. A handbox allows for quick and simple positioning of suction cups and backstops, while the automatic lubrication system greases the axis components during movement to ensure smooth operation.

It comes equipped with a touch-screen monitor, a starter kit including backstops, suction cups, and cones, a cross laser for table setup, IC Stone Multi MX-Core CAD/CAM software, and a tool kit for milling and grinding. Additionally, two water flow switches protect the system by stopping operation in case of reduced water supply.
