Description
- Length min max mm 1 – 1050 (can be increased by programming movement in more steps)
- Width min/max at 90°mm 10 – 250 min/max at 45° mm 10 – 240
- Thickness min/max mm 4 (stacked)– 60
- Productivity: 1 cut each 3/5 seconds
- In compliance with CE safety rules
- Volt 400/50 Hz
Main structure:
- Heavy duty mono-bloc frame of electro-welded steel
Automatic loader:
- Automatic loading system with vertical rods magazine, max loadable rods length 1300
- Loading with self-centering pliers
- Automatic step by step advancement movement of the rods controlled by NC on X axis
- NC programmable run of loading carriage from 1 to 1050 mm (for higher lengths the automatic selfcentering plier carries out “pick up” movements of the pieces)
- Pieces discharging motorized belt L=600×75 motor Kw 0,33

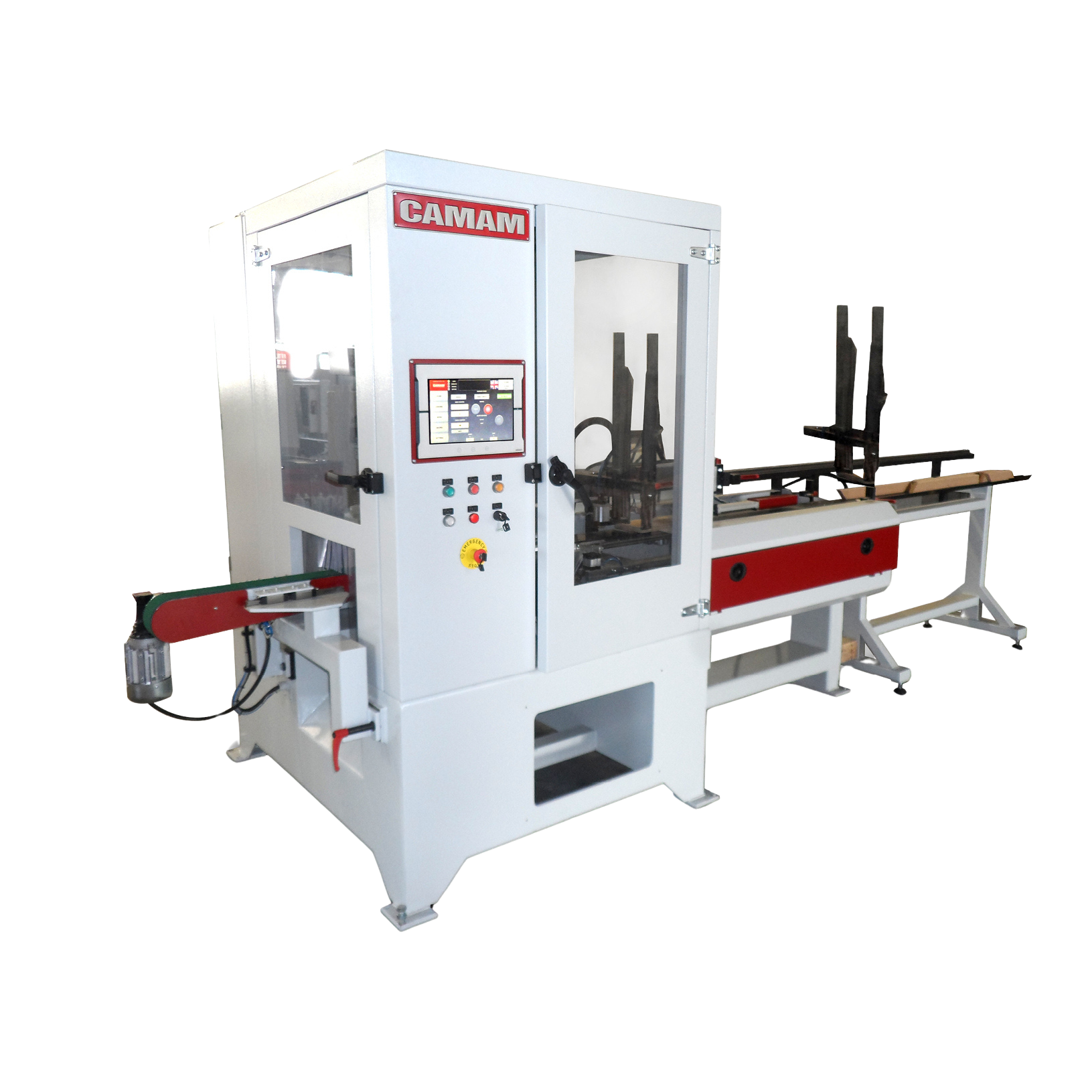

Vertical cutting unit:
- 1 vertical cutting unit on square rail bearings, activated by pneumatic cylinder
- Blade Ø 500, motor kW 3.0 / 2.900 rpm
- Automatic rotation of the cutting unit on vertical plane controlled by NC, cutting range -60°/+60°
- Each cut is programmable on independent angle
- Pneumatic piece locking device on each side of the blade
- Protection and suction cowling with nr. 2 dust intake openings Ø 80mm
Control unit:
- 12’’ touch screen control panel
- Software dedicated to NC with easy and intuitive operator interface
- CAD programming and rod visual, integrated to the Software

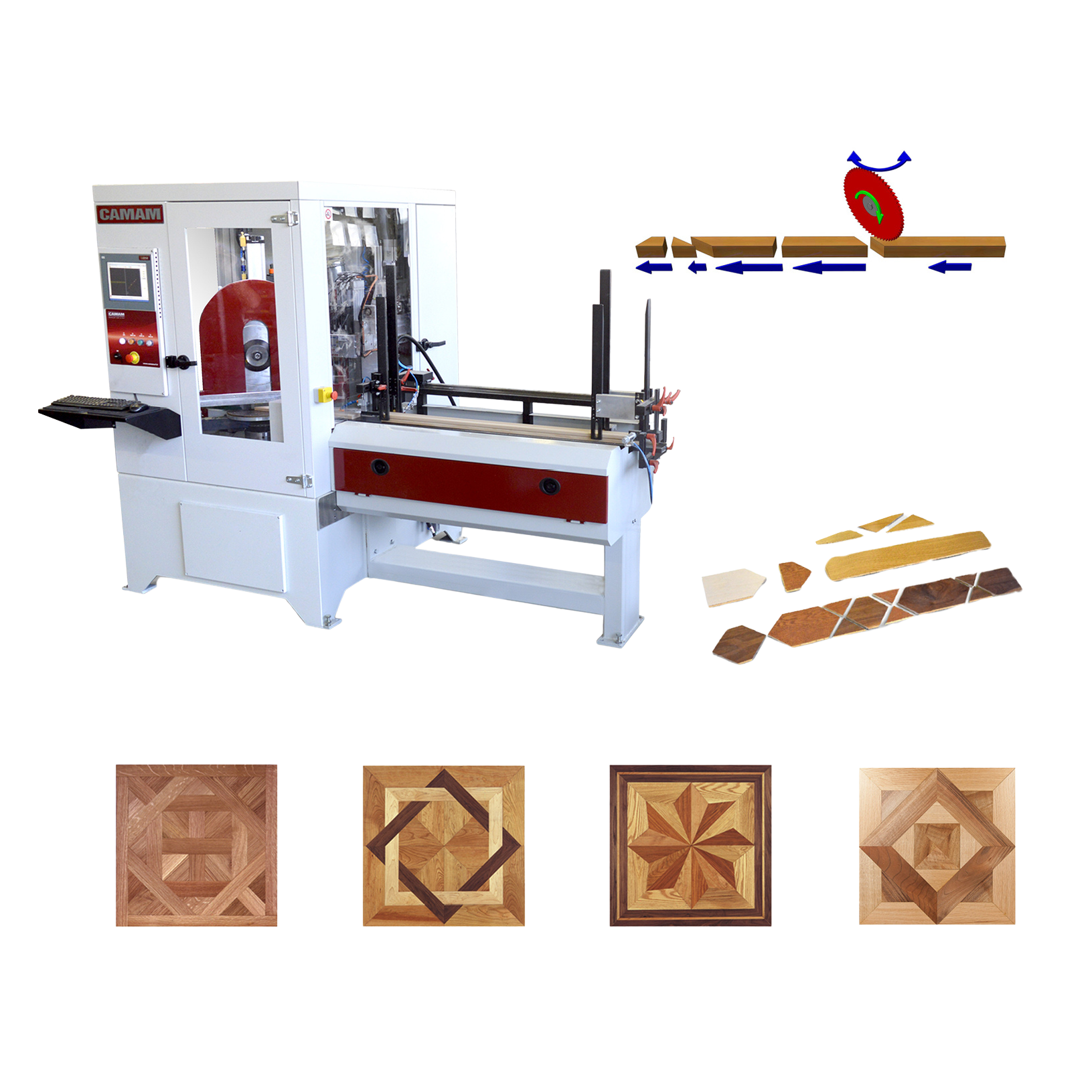

- Special “Parquet” working macros with possibility of “arrow shaped double cut”
Safety devices:
- Total protection of the working area with cabin, interlocked doors with security microswitches and inspection windows
- 1 suction opening in the lower area Ø 120mm
Optionals:
- Rods vertical magazine with length capacity increased up to mm 3.000
- Discharge device with mobile arm and suction cup for very small elements
