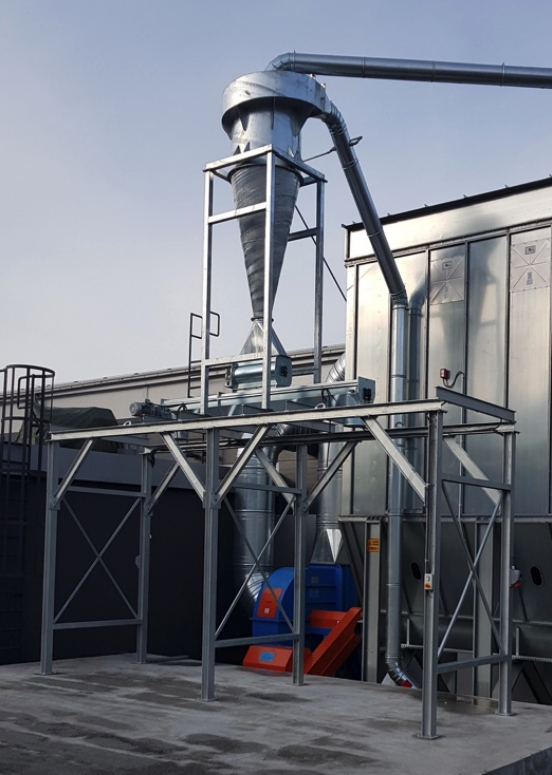

Description
- Material: Made of 2.0 mm thick hot-dip galvanized sheet metal.
- Discharge sluice: Equipped with a 2.2 kW motor mounted under the cyclone.
- Load-bearing structure: Made of hot-dip galvanized steel profiles.
- Screw conveyor: For container unloading, with a diameter of Ø 250 mm and both clockwise and counterclockwise rotation.
Dimensions:
- Height: 4,000 mm
- Diameter: 1,200 mm
- Weight: 475 kg
Centrifugal fan mod KC 561:
- Motor: Three-phase electric motor, 4-pole
- Power: 30 kW
- Power supply: 400/700 V
- Motor support
Performance:
- Airflow: 13,500 m³/h
- Total pressure max.: 3500 Pa at 15°C
- Speed: 2,900 rpm
- Power consumption: 23 kW at 15°C
- Installed power: 30 kW
- Weight: 350 kg
- Noise level: 96 dB at a distance of 1.5 m
